Create Asset

Create Asset

list.gsp create.gsp show.gsp AssetController Asset AssetType AssetProperty
create()
new Asset()
assetInstance
assetInstance

ajaxGetTypeProperties(params.assetTypeID)
get(assetTypeID)
assetType
assetTypeProperties
save(params)
save(params)
assetInstance

[*]
new AssetProperty(assetTypeProperty, value)
assetProperty
addToAssetProperties(assetProperty)

show()
assetInstance

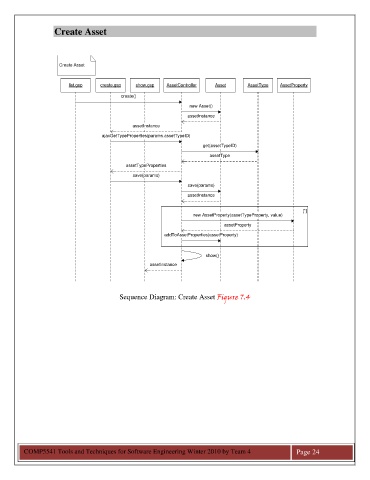

Sequence Diagram: Create Asset Figure 7.4
