Create Location

Create Location

list.gsp create.gsp show.gsp LocationController Location LocationType LocationProperty
create()
new Location()
locationInstance
locationInstance
ajaxGetTypeProperties(params.locationTypeID)
get(locationTypeID)
locationType
locationTypeProperties
save(params)
save(params)
locationInstance

[*]
new LocationProperty(locationTypeProperty, value)
locationProperty
addToLocationProperties(locationProperty)

show()
locationInstance

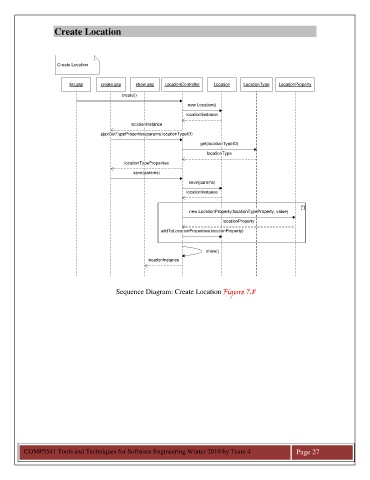

Sequence Diagram: Create Location Figure 7.8
