pure lighting for a green world

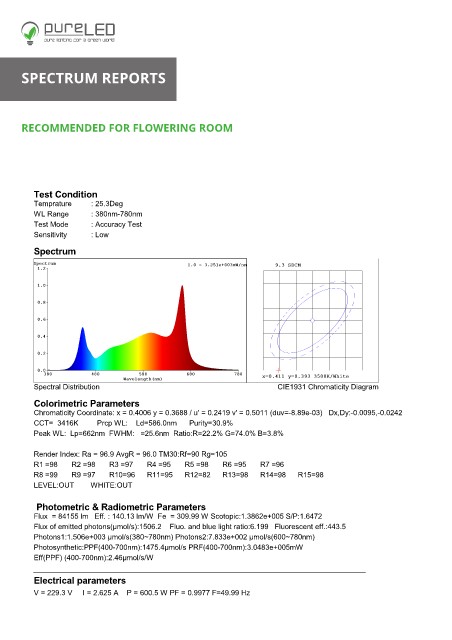

SPECTRUM REPORTS

RECOMMENDED FOR FLOWERING ROOM

Test Condition
Temprature : 25.3Deg
WL Range : 380nm-780nm
Test Mode : Accuracy Test
Sensitivity : Low
Spectrum

Spectrum 1.0 = 3.251e+003mW/nm 9.3 SDCM
1.2

1.0

0.8
0.6

0.4

0.2

0.0
380 480 580 680 780 x=0.411 y=0.393 3500K/White
Wavelength(nm)
Spectral Distribution CIE1931 Chromaticity Diagram
Colorimetric Parameters
Chromaticity Coordinate: x = 0.4006 y = 0.3688 / u' = 0.2419 v' = 0.5011 (duv=-8.89e-03) Dx,Dy:-0.0095,-0.0242
CCT= 3416K Prcp WL: Ld=586.0nm Purity=30.9%
Peak WL: Lp=662nm FWHM: =25.6nm Ratio:R=22.2% G=74.0% B=3.8%

Render Index: Ra = 96.9 AvgR = 96.0 TM30:Rf=90 Rg=105
R1 =98 R2 =98 R3 =97 R4 =95 R5 =98 R6 =95 R7 =96
R8 =99 R9 =97 R10=96 R11=95 R12=82 R13=98 R14=98 R15=98
LEVEL:OUT WHITE:OUT

Photometric & Radiometric Parameters
Flux = 84155 lm Eff. : 140.13 lm/W Fe = 309.99 W Scotopic:1.3862e+005 S/P:1.6472
Flux of emitted photons(μmol/s):1506.2 Fluo. and blue light ratio:6.199 Fluorescent eff.:443.5
Photons1:1.506e+003 μmol/s(380~780nm) Photons2:7.833e+002 μmol/s(600~780nm)
Photosynthetic:PPF(400-700nm):1475.4μmol/s PRF(400-700nm):3.0483e+005mW
Eff(PPF) (400-700nm):2.46μmol/s/W
__________________________________________________________________________________
Electrical parameters

V = 229.3 V I = 2.625 A P = 600.5 W PF = 0.9977 F=49.99 Hz
