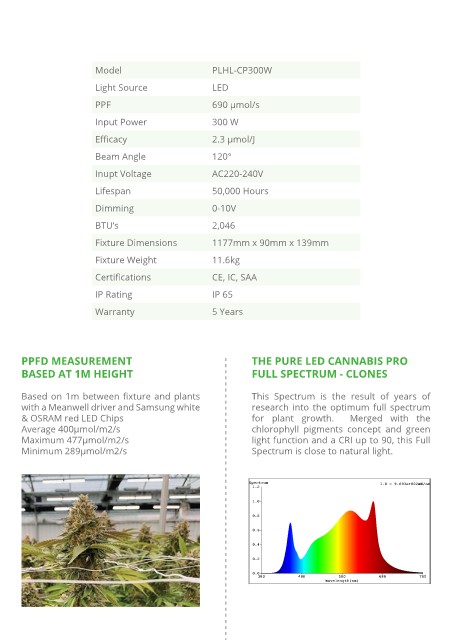

Model PLHL-CP300W

Light Source LED

PPF 690 µmol/s

Input Power 300 W

Efficacy 2.3 µmol/J

Beam Angle 120°

Inupt Voltage AC220-240V
Lifespan 50,000 Hours

Dimming 0-10V

BTU’s 2,046

Fixture Dimensions 1177mm x 90mm x 139mm

Fixture Weight 11.6kg
Certifications CE, IC, SAA

IP Rating IP 65

Warranty 5 Years

PPFD MEASUREMENT THE PURE LED CANNABIS PRO
BASED AT 1M HEIGHT FULL SPECTRUM - CLONES

Based on 1m between fixture and plants This Spectrum is the result of years of
with a Meanwell driver and Samsung white research into the optimum full spectrum
& OSRAM red LED Chips for plant growth. Merged with the
chlorophyll pigments concept and green
Average 400µmol/m2/s Test Condition
Temprature
: 25.3Deg
light function and a CRI up to 90, this Full
Maximum 477µmol/m2/s WL Range : 380nm-780nm
Spectrum is close to natural light.
Minimum 289µmol/m2/s Test Mode : Accuracy Test
Sensitivity : Low
Spectrum
Spectrum
1.0 = 9.693e+002mW/nm 5.6 SDCM
1.2
1.0
0.8
0.6
0.4

0.2
0.0
380 480 580 680 780 x=0.411 y=0.393 3500K/White
Wavelength(nm)
Spectral Distribution CIE1931 Chromaticity Diagram
Colorimetric Parameters
Chromaticity Coordinate: x = 0.4173 y = 0.3885 / u' = 0.2445 v' = 0.5121 (duv=-3.37e-03) Dx,Dy:-0.0042,-0.0097
CCT= 3229K Prcp WL: Ld=583.3nm Purity=41.8%
Peak WL: Lp=657nm FWHM: =141.2nm Ratio:R=22.2% G=74.7% B=3.1%

Render Index: Ra = 89.3 AvgR = 85.9 TM30:Rf=87 Rg=100
R1 =88 R2 =94 R3 =97 R4 =88 R5 =89 R6 =92 R7 =89
R8 =77 R9 =48 R10=87 R11=89 R12=78 R13=90 R14=99 R15=85
LEVEL:OUT WHITE:ANSI_3500K
Photometric & Radiometric Parameters
Flux = 45351 lm Eff. : 148.82 lm/W Fe = 147.11 W Scotopic:67635 S/P:1.4914
Flux of emitted photons(μmol/s):710.66 Fluo. and blue light ratio:7.292 Fluorescent eff.:418.2
Photons1:7.107e+002 μmol/s(380~780nm) Photons2:6.921e+002 μmol/s(400~700nm)
Photosynthetic:PPF(400-700nm):692.08μmol/s PRF(400-700nm):1.4401e+005mW
Eff(PPF) (400-700nm):2.27μmol/s/W
__________________________________________________________________________________
Electrical parameters
V = 229.5 V I = 1.348 A P = 304.7 W PF = 0.9848 F=49.99 Hz
