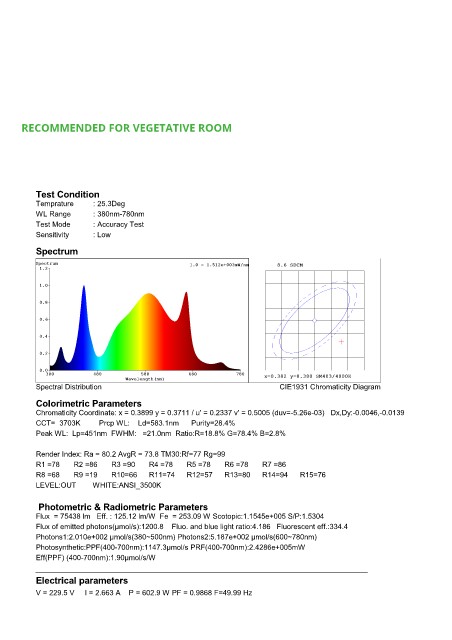

RECOMMENDED FOR VEGETATIVE ROOM

Test Condition
Temprature : 25.3Deg
WL Range : 380nm-780nm
Test Mode : Accuracy Test
Sensitivity : Low
Spectrum

Spectrum 1.0 = 1.512e+003mW/nm 8.6 SDCM
1.2

1.0

0.8
0.6

0.4

0.2

0.0
380 480 580 680 780 x=0.382 y=0.380 SM403/4000K
Wavelength(nm)
Spectral Distribution CIE1931 Chromaticity Diagram
Colorimetric Parameters
Chromaticity Coordinate: x = 0.3899 y = 0.3711 / u' = 0.2337 v' = 0.5005 (duv=-5.26e-03) Dx,Dy:-0.0046,-0.0139
CCT= 3703K Prcp WL: Ld=583.1nm Purity=28.4%
Peak WL: Lp=451nm FWHM: =21.0nm Ratio:R=18.8% G=78.4% B=2.8%

Render Index: Ra = 80.2 AvgR = 73.8 TM30:Rf=77 Rg=99
R1 =78 R2 =86 R3 =90 R4 =78 R5 =78 R6 =78 R7 =86
R8 =68 R9 =19 R10=66 R11=74 R12=57 R13=80 R14=94 R15=76
LEVEL:OUT WHITE:ANSI_3500K

Photometric & Radiometric Parameters
Flux = 75438 lm Eff. : 125.12 lm/W Fe = 253.09 W Scotopic:1.1545e+005 S/P:1.5304
Flux of emitted photons(μmol/s):1200.8 Fluo. and blue light ratio:4.186 Fluorescent eff.:334.4
Photons1:2.010e+002 μmol/s(380~500nm) Photons2:5.187e+002 μmol/s(600~780nm)
Photosynthetic:PPF(400-700nm):1147.3μmol/s PRF(400-700nm):2.4286e+005mW
Eff(PPF) (400-700nm):1.90μmol/s/W
__________________________________________________________________________________
Electrical parameters

V = 229.5 V I = 2.663 A P = 602.9 W PF = 0.9868 F=49.99 Hz
