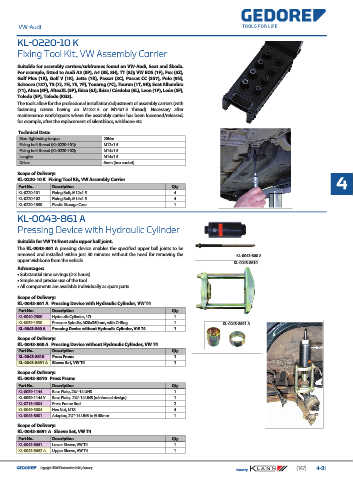

VW-Audi

KL-0220-10 K KL-0220-10 K
Fixing Tool Kit, VW Assembly Carrier

Suitable for assembly carriers/subframes found on VW-Audi, Seat and Škoda.
For example, fitted to Audi A3 (8P), A4 (8E, 8H), TT (8J); VW EOS (1F), Fox (5Z),
Golf Plus (1K), Golf V (1K), Jetta (1K), Passat (3C), Passat CC (357), Polo (9N),
Scirocco (137), T5 (7J, 7H, 7E, 7F), Touareg (7C), Touran (1T, 9R); Seat Alhambra
(71), Altea (5P), AlteaXL (5P), Ibiza (6J), Ibiza / Córdoba (6L), Leon (1P), León (5F),
Toledo (5P), Toledo (KG3).
The tools allow for the professional installation/adjustment of assembly carriers (with
fastening screws having an M12x1.5 or M14x1.5 thread). Necessary after
maintenance work/repairs where the assembly carrier has been loosened/released,
for example, after the replacement of silentblocs, wishbone etc.

Technical Data:
Max. tightening torque: 20Nm
Fixing bolt thread (KL-0220-101): M12x1.5
Fixing bolt thread (KL-0220-102): M14x1.5
Length: M14x1.5
Drive: 6mm (hex socket)

Scope of Delivery:
KL-0220-10 K Fixing Tool Kit, VW Assembly Carrier
Part No. Description Qty 4
KL-0220-101 Fixing Bolt, M12x1.5 4
KL-0220-102 Fixing Bolt, M14x1.5 4
KL-0220-1090 Plastic Storage Case 1

KL-0043-861 A KL-0043-861 A
Pressing Device with Hydraulic Cylinder

Suitable for VW T4 front axle upper ball joint.
The KL-0043-861 A pressing device enables the specified upper ball joints to be
removed and installed within just 30 minutes without the need for removing the KL-0043-860 A
upper wishbone from the vehicle.
KL-0043-8610
Advantages:
• Substantial time savings (2-3 hours).
• Simple and precise use of the tool.
• All components are available individually as spare parts.

Scope of Delivery:
KL-0043-861 A Pressing Device with Hydraulic Cylinder, VW T4
Part No: Description Qty
KL-0040-2500 Hydraulic Cylinder, 17t 1
KL-0039-1930 Pressure Spindle, M20x350mm, with O-Ring 1
KL-0043-8691 A
KL-0043-860 A Pressing Device without Hydraulic Cylinder, VW T4 1
Scope of Delivery:
KL-0043-860 A Pressing Device without Hydraulic Cylinder, VW T4
Part No. Description Qty
KL-0043-8610 Press Frame 1
KL-0043-8691 A Sleeve Set, VW T4 1
Scope of Delivery:
KL-0043-8610 Press Frame
Part No. Description Qty
KL-0039-1144 Base Plate, 2¼"-14 UNS 1
KL-0039-1144 V Base Plate, 2¼"-14 UNS (reinforced design) 1
KL-0215-4004 Press Frame Rod 2
KL-0049-3004 Hex Nut, M18 4
KL-0043-8601 Adaptor, 2¼"-14 UNS to Ø 60mm 1
Scope of Delivery:
KL-0043-8691 A Sleeve Set, VW T4
Part No. Description Qty
KL-0043-8661 Lower Sleeve, VW T4 1
KL-0043-8662 A Upper Sleeve, VW T4 1
