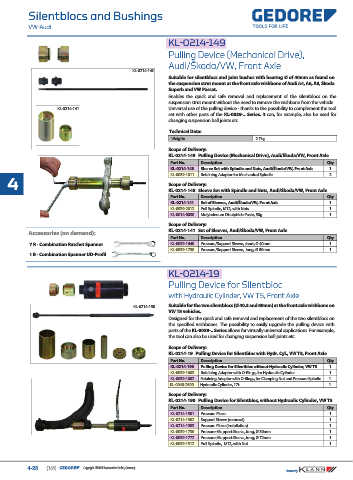

Silentblocs and Bushings
VW-Audi

KL-0214-149
KL-0214-149
Pulling Device (Mechanical Drive),
Audi/Škoda/VW, Front Axle
KL-0214-148
Suitable for silentblocs and joint bushes with bearing Ø of 40mm as found on
the suspension strut mount at the front axle wishbone of Audi A4, A6, A8, Škoda
Superb and VW Passat.
Enables the quick and safe removal and replacement of the silentblocs on the
suspension strut mount without the need to remove the wishbone from the vehicle.
KL-0214-141 Universal use of the pulling device - thanks to the possibility to complement the tool
set with other parts of the KL-0039-.. Series. It can, for example, also be used for
changing suspension ball joints etc.
Technical Data:
Weigth: 2.7kg
Scope of Delivery:
KL-0214-149 Pulling Device (Mechanical Drive), Audi/Škoda/VW, Front Axle
Part No. Description Qty
KL-0214-148 Sleeve Set with Spindle and Nuts, Audi/Škoda/VW, Front Axle 1
KL-0039-1011 Retaining Adaptor for Mechanical Spindle 2
4 Scope of Delivery:
KL-0214-148 Sleeve Set with Spindle and Nuts, Audi/Škoda/VW, Front Axle
Part No. Description Qty
KL-0214-141 Set of Sleeves, Audi/Škoda/VW, Front Axle 1
KL-0039-2012 Pull Spindle, M12, with Nuts 1
KL-0014-0030 Molybdenum Disulphide Paste, 50g 1
Scope of Delivery:
KL-0214-141 Set of Sleeves, Audi/Škoda/VW, Front Axle
Accessories (on demand):
Part No. Description Qty
7 R - Combination Ratchet Spanner KL-0039-1640 Pressure/Support Sleeve, short, Ø 40mm 1
KL-0039-1750 Pressure/Support Sleeve, long, Ø 50mm 1
1 B - Combination Spanner UD-Profil

KL-0214-19
KL-0214-19
Pulling Device for Silentbloc
with Hydraulic Cylinder, VW T5, Front Axle

KL-0214-190 Suitable for the two silentblocs (Ø 40.3 and 60mm) at the front axle wishbone on
VW T5 vehicles.
Designed for the quick and safe removal and replacement of the two silentblocs on
the specified wishbones. The possibility to easily upgrade the pulling device with
parts of the KL-0039-.. Series allows for virtually universal applications. For example,
the tool can also be used for changing suspension ball joints etc.
Scope of Delivery:
KL-0214-19 Pulling Device for Silentbloc with Hydr. Cyl., VW T5, Front Axle
Part No. Description Qty
KL-0214-190 Pulling Device for Silentbloc without Hydraulic Cylinder, VW T5 1
KL-0039-1003 Retaining Adaptor with O-Rings, for Hydraulic Cylinder 1
KL-0039-1002 Retaining Adaptor with O-Rings, for Clamping Nut and Pressure Spindle 1
KL-0040-2500 Hydraulic Cylinder, 17t 1
Scope of Delivery:
KL-0214-190 Pulling Device for Silentbloc, without Hydraulic Cylinder, VW T5
Part No. Description Qty
KL-0214-1901 Pressure Piece 1
KL-0214-1902 Support Sleeve (removal) 1
KL-0214-1903 Pressure Piece (installation) 1
KL-0039-1730 Pressure-/Support Sleeve, long, Ø 30mm 1
KL-0039-1772 Pressure-/Support Sleeve, long, Ø 72mm 1
KL-0039-1912 Pull Spindle, M12, with Nut 1
