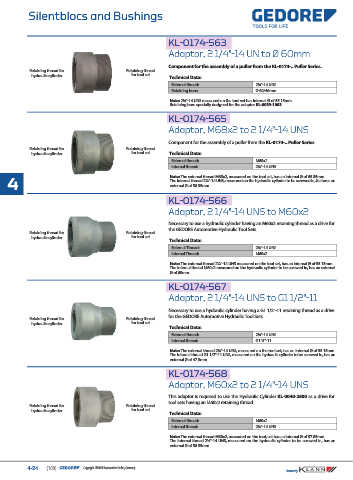

Silentblocs and Bushings
KL-0174-563
Retaining thread for
hydraulic cylinder
KL-0174-565
Retaining thread for
hydraulic cylinder
4 The internal thread 2¼"-14 UNS, measured on the hydraulic cylinder to be screwed in, features an
KL-0174-566
Retaining thread for
hydraulic cylinder
KL-0174-567
Retaining thread for
hydraulic cylinder
KL-0174-568
Retaining thread for
hydraulic cylinder
4-24 (160) Copyright GEDORE Automotive GmbH, Germany
KL-0174-563
Adaptor, 2 1/4"-14 UN to Ø 60mm
Component for the assembly of a puller from the KL-0174-.. Puller Series.
Retaining thread
for tool set
Technical Data:
External thread: 2¼"-14 UNS
Retaining bore: Ø 60/46mm
Note: 2¼"-14 UNS measured on the tool set has internal Ø of 55.15mm.
Retaining bore specially designed for the adaptor KL-0039-1003.
KL-0174-565
Adaptor, M68x2 to 2 1/4"-14 UNS
Component for the assembly of a puller from the KL-0174-.. Puller Series.
Retaining thread
for tool set Technical Data:
External thread: M68x2
Internal thread: 2¼"-14 UNS
Note: The external thread M68x2, measured on the tool set, has an internal Ø of 65.85mm.
external Ø of 56.95mm.
KL-0174-566
Adaptor, 2 1/4"-14 UNS to M60x2
Necessary to use a hydraulic cylinder having an M60x2 retaining thread as a drive for
the GEDORE Automotive Hydraulic Tool Sets.
Retaining thread
for tool set
Technical Data:
External Thread: 2¼"-14 UNS
Internal Thread: M60x2
Note: The external thread 2¼“-14 UNS measured on the tool set, has an internal Ø of 55.15mm.
The internal thread M60x2 measured on the hydraulic cylinder to be screwed in, has an external
Ø of 60mm.
KL-0174-567
Adaptor, 2 1/4"-14 UNS to G1 1/2"-11
Necessary to use a hydraulic cylinder having a G1 1/2"-11 retaining thread as a drive
for the GEDORE Automotive Hydraulic Tool Sets.
Retaining thread
for tool set
Technical Data:
External thread: 2¼"-14 UNS
Internal thread: G1 ½"-11
Note: The external thread 2¼"-14 UNS, measured on the tool set, has an internal Ø of 55.15mm.
The internal thread G1 1/2"-11 UNS, measured on the hydraulic cylinder to be screwed in, has an
external Ø of 47.8mm.
KL-0174-568
Adaptor, M60x2 to 2 1/4"-14 UNS
This adaptor is required to use the Hydraulic Cylinder KL-0040-2500 as a drive for
tool sets having an M60x2 retaining thread.
Retaining thread
for tool set
Technical Data:
External thread: M60x2
Internal thread: 2¼"-14 UNS
Note: The external thread M60x2, measured on the tool, set has an internal Ø of 57.85mm.
The internal thread 2¼"-14 UNS, measured on the hydraulic cylinder to be screwed in, has an
external Ø of 56.95mm.
