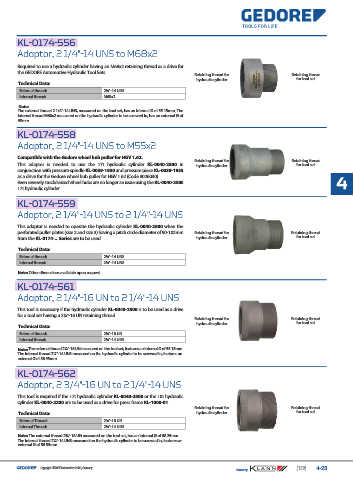

Kapitel_4.fm Seite 159 Montag, 10. April 2017 7:14 07

KL-0174-556 KL-0174-556
Adaptor, 2 1/4"-14 UNS to M68x2

Required to use a hydraulic cylinder having an M68x2 retaining thread as a drive for
the GEDORE Automotive Hydraulic Tool Sets.
Retaining thread for Retaining thread
hydraulic cylinder for tool set
Technical Data:
External thread: 2¼“-14 UNS
Internal thread: M68x2
Note:
The external thread 2 1/4“-14 UNS, measured on the tool set, has an internal Ø of 55.15mm. The
internal thread M60x2 measured on the hydraulic cylinder to be screwed in, has an external Ø of
68mm.

KL-0174-558 KL-0174-558
Adaptor, 2 1/4"-14 UNS to M55x2

Compatible with the Gedore wheel hub puller for HGV 1.62.
Retaining thread for Retaining thread
This adaptor is needed to use the 17t hydraulic cylinder KL-0040-2500 in hydraulic cylinder for tool set
conjunction with pressure spindle KL-0039-1930 and pressure piece KL-0039-1935
as a drive for the Gedore wheel hub puller for HGV 1.62 (Code 8026030).
Even severely stuck/seized wheel hubs are no longer an issue using the KL-0040-2500 4
17t hydraulic cylinder.

KL-0174-559 KL-0174-559
Adaptor, 2 1/4"-14 UNS to 2 1/4"-14 UNS

This adaptor is needed to operate the hydraulic cylinder KL-0040-2500 when the
perforated puller plates (size 2 and size 3) having a pitch circle diameter of 90-102mm Retaining thread for Retaining thread
from the KL-0174-.. Series are to be used. hydraulic cylinder for tool set
Technical Data:
External thread: 2¼“-14 UNS
Internal thread: 2¼“-14 UNS
Note: Other dimensions available upon request.

KL-0174-561 KL-0174-561
Adaptor, 2 1/4"-16 UN to 2 1/4"-14 UNS

This tool is necessary if the hydraulic cylinder KL-0040-2500 is to be used as a drive
for a tool set having a 2¼"-16 UN retaining thread.
Retaining thread for Retaining thread
hydraulic cylinder for tool set
Technical Data:
External thread: 2¼"-16 UN
Internal thread: 2¼"-14 UNS
Note: The external thread 2¼"-16 UN measured on the tool set, features an internal Ø of 55.15mm.
The internal thread 2¼"-14 UNS measured on the hydraulic cylinder to be screwed in, features an
external Ø of 56.95mm.
KL-0174-562 KL-0174-562

Adaptor, 2 3/4"-16 UN to 2 1/4"-14 UNS
This tool is required if the 17t hydraulic cylinder KL-0040-2500 or the 10t hydraulic
cylinder KL-0040-2200 are to be used as a drive for press frame KL-1000-01 .
Retaining thread for Retaining thread
Technical Data: hydraulic cylinder for tool set
External Thread: 2¾"-16 UN
Internal Thread: 2¼"-14 UNS
Note: The external thread 2¾"-16 UN measured on the tool set, has an internal Ø of 68.25mm.
The internal thread 2¼"-14 UNS measured on the hydraulic cylinder to be screwed in, features an
external Ø of 56.95mm.

Copyright GEDORE Automotive GmbH, Germany (159) 4-23
