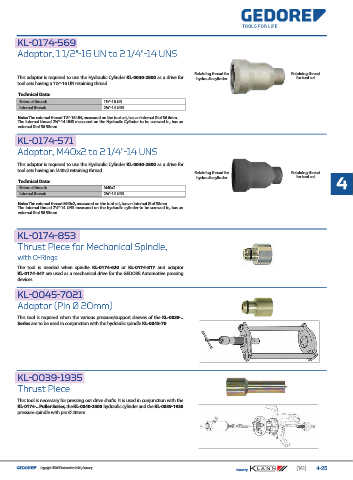

Kapitel_4.fm Seite 161 Montag, 10. April 2017 7:14 07

KL-0174-569 KL-0174-569
Adaptor, 1 1/2"-16 UN to 2 1/4"-14 UNS

Retaining thread for Retaining thread
This adaptor is required to use the Hydraulic Cylinder KL-0040-2500 as a drive for hydraulic cylinder for tool set
tool sets having a 1½"-16 UN retaining thread.

Technical Data:
External thread: 1½"-16 UN
Internal thread: 2¼"-14 UNS
Note: The external thread 1½"-16 UN, measured on the tool set, has an internal Ø of 36.6mm.
The internal thread 2¼"-14 UNS measured on the Hydraulic Cylinder to be screwed in, has an
external Ø of 56.95mm.
KL-0174-571 KL-0174-571

Adaptor, M40x2 to 2 1/4"-14 UNS
This adaptor is required to use the Hydraulic Cylinder KL-0040-2500 as a drive for
tool sets having an M40x2 retaining thread.
Retaining thread for Retaining thread
hydraulic cylinder for tool set
Technical Data: 4
External thread: M40x2
Internal thread: 2¼"-14 UNS
Note: The external thread M40x2, measured on the tool set, has an internal Ø of 38mm.
The internal thread 2¼"-14 UNS measured on the hydraulic cylinder to be screwed in, has an
external Ø of 56.95mm.

KL-0174-853 KL-0174-853

Thrust Piece for Mechanical Spindle,
with O-Rings
The tool is needed when spindle KL-0174-620 or KL-0174-817 and adaptor
KL-0174-547 are used as a mechanical drive for the GEDORE Automotive pressing
devices.
KL-0045-7021 KL-0045-7021

Adaptor (Pin Ø 20mm)

This tool is required when the various pressure/support sleeves of the KL-0039-..
Series are to be used in conjunction with the hydraulic spindle KL-0045-70.

KL-0039-1935 KL-0039-1935
Thrust Piece

This tool is necessary for pressing out drive shafts. It is used in conjunction with the
KL-0174-.. Puller Series, the KL-0040-2500 hydraulic cylinder and the KL-0039-1930
pressure spindle with pin Ø 20mm.

Copyright GEDORE Automotive GmbH, Germany (161) 4-25
