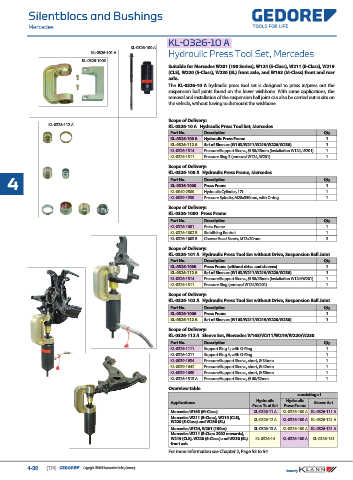

Silentblocs and Bushings
Mercedes

KL-0326-10 A KL-0326-10 A
KL-0326-100 A
Hydraulic Press Tool Set, Mercedes
KL-0326-101 A
KL-0326-1000
Suitable for Mercedes W201 (190 Series), W124 (E-Class), W211 (E-Class), W219
(CLS), W220 (S-Class), W230 (SL) front axle, and W163 (M-Class) front and rear
axle.
The KL-0326-10 A hydraulic press tool set is designed to press in/press out the
suspension ball joints found on the lower wishbone. With some applications, the
removal and installation of the suspension ball joint can also be carried out in situ on
the vehicle, without having to dismount the wishbone.

Scope of Delivery:
KL-0326-112 A KL-0326-10 A Hydraulic Press Tool Set, Mercedes
Part No. Description Qty
KL-0326-100 A Hydraulic Press Frame 1
KL-0326-112 A Set of Sleeves (W163/W211/W219/W220/W230) 1
KL-0326-1314 Pressure/Support Sleeve, Ø 56/48mm (installation W124, W201) 1
KL-0326-1311 Pressure Ring 3 (removal W124, W201) 1
Scope of Delivery:
KL-0326-100 A Hydraulic Press Frame, Mercedes
Description
4 Part No. Press Frame Qty
KL-0326-1000
1
KL-0040-2500 Hydraulic Cylinder, 17t 1
KL-0039-1930 Pressure Spindle, M20x350mm, with O-ring 1
Scope of Delivery:
KL-0326-1000 Press Frame
Part No. Description Qty
KL-0326-1001 Press Frame 1
KL-0326-1002 B Stabilising Bracket 1
KL-0326-1003 B Cheese Head Screw, M12x20mm 2
Scope of Delivery:
KL-0326-101 A Hydraulic Press Tool Set without Drive, Suspension Ball Joint
Part No. Description Qty
KL-0326-1000 Press Frame (without drive and sleeves) 1
KL-0326-112 A Set of Sleeves (W163/W211/W219/W220/W230) 1
KL-0326-1314 Pressure/Support Sleeve, Ø 56/48mm (installation W124/W201) 1
KL-0326-1311 Pressure Ring (removal W124/W201) 1
Scope of Delivery:
KL-0326-102 A Hydraulic Press Tool Set without Drive, Suspension Ball Joint
Part No. Description Qty
KL-0326-1000 Press Frame 1
KL-0326-112 A Set of Sleeves (W163/W211/W219/W220/W230) 1
Scope of Delivery:
KL-0326-112 A Sleeve Set, Mercedes W163/W211/W219/W220/W230
Part No. Description Qty
KL-0326-1111 Support Ring 1, with O-Ring 1
KL-0326-1211 Support Ring 4, with O-Ring 1
KL-0039-1634 Pressure/Support Sleeve, short, Ø 34mm 1
KL-0039-1642 Pressure/Support Sleeve, short, Ø 42mm 1
KL-0039-1650 Pressure/Support Sleeve, short, Ø 50mm 1
KL-0326-1313 A Pressure/Support Sleeve, Ø 60/52mm 1
Overview table
consisting of
Hydraulic Hydraulic
Applications: Sleeve Set
Press Tool Set Press Frame
Mercedes W163 (M-Class) KL-0326-11 A KL-0326-100 A KL-0326-111 A
Mercedes W211 (E-Class), W219 (CLS), KL-0326-12 A KL-0326-100 A KL-0326-121 A
W220 (S-Class) and W230 (SL)
Mercedes W124, W201 (190er) KL-0326-13 A KL-0326-100 A KL-0326-131 A
Mercedes W211 (E-Class 2002 onwards),
W219 (CLS), W220 (S-Class) and W230 (SL) KL-0326-14 KL-0326-100 A KL-0326-141
front axle
For more Information see Chapter 2, Page 53 to 54.

4-38 (174) Copyright GEDORE Automotive GmbH, Germany
