VSP 2018 Operations Manual

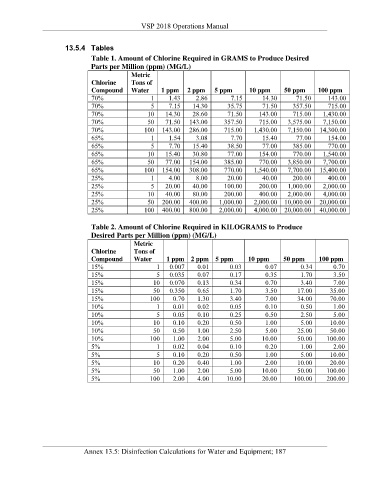

13.5.4 Tables
Table 1. Amount of Chlorine Required in GRAMS to Produce Desired
Parts per Million (ppm) (MG/L)
Metric
Chlorine Tons of
Compound Water 1 ppm 2 ppm 5 ppm 10 ppm 50 ppm 100 ppm
70% 1 1.43 2.86 7.15 14.30 71.50 143.00
70% 5 7.15 14.30 35.75 71.50 357.50 715.00
70% 10 14.30 28.60 71.50 143.00 715.00 1,430.00
70% 50 71.50 143.00 357.50 715.00 3,575.00 7,150.00
70% 100 143.00 286.00 715.00 1,430.00 7,150.00 14,300.00
65% 1 1.54 3.08 7.70 15.40 77.00 154.00
65% 5 7.70 15.40 38.50 77.00 385.00 770.00
65% 10 15.40 30.80 77.00 154.00 770.00 1,540.00
65% 50 77.00 154.00 385.00 770.00 3,850.00 7,700.00
65% 100 154.00 308.00 770.00 1,540.00 7,700.00 15,400.00
25% 1 4.00 8.00 20.00 40.00 200.00 400.00
25% 5 20.00 40.00 100.00 200.00 1,000.00 2,000.00
25% 10 40.00 80.00 200.00 400.00 2,000.00 4,000.00
25% 50 200.00 400.00 1,000.00 2,000.00 10,000.00 20,000.00
25% 100 400.00 800.00 2,000.00 4,000.00 20,000.00 40,000.00

Table 2. Amount of Chlorine Required in KILOGRAMS to Produce
Desired Parts per Million (ppm) (MG/L)
Metric
Chlorine Tons of
Compound Water 1 ppm 2 ppm 5 ppm 10 ppm 50 ppm 100 ppm
15% 1 0.007 0.01 0.03 0.07 0.34 0.70
15% 5 0.035 0.07 0.17 0.35 1.70 3.50
15% 10 0.070 0.13 0.34 0.70 3.40 7.00
15% 50 0.350 0.65 1.70 3.50 17.00 35.00
15% 100 0.70 1.30 3.40 7.00 34.00 70.00
10% 1 0.01 0.02 0.05 0.10 0.50 1.00
10% 5 0.05 0.10 0.25 0.50 2.50 5.00
10% 10 0.10 0.20 0.50 1.00 5.00 10.00
10% 50 0.50 1.00 2.50 5.00 25.00 50.00
10% 100 1.00 2.00 5.00 10.00 50.00 100.00
5% 1 0.02 0.04 0.10 0.20 1.00 2.00
5% 5 0.10 0.20 0.50 1.00 5.00 10.00
5% 10 0.20 0.40 1.00 2.00 10.00 20.00
5% 50 1.00 2.00 5.00 10.00 50.00 100.00
5% 100 2.00 4.00 10.00 20.00 100.00 200.00

Annex 13.5: Disinfection Calculations for Water and Equipment; 187
