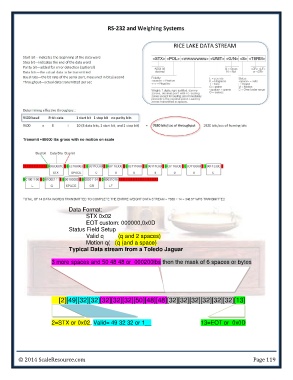

P. 119
Data Format:
STX 0x02
EOT custom: 000000,0x0D
Status Field Setup
Valid q (q and 2 spaces)
Motion q( (q (and a space)
Typical Data stream from a Toledo Jaguar
3 more spaces and 50 48 48 or 000200lbs then the mask of 6 spaces or bytes
[2][49][32][32][32][32][32][50][48][48][32][32][32][32][32][32][13]
2=STX or 0x02, Valid= 49 32 32 or 1__ 13=EOT or 0x0D
© 2014 ScaleResource.com Page 119
