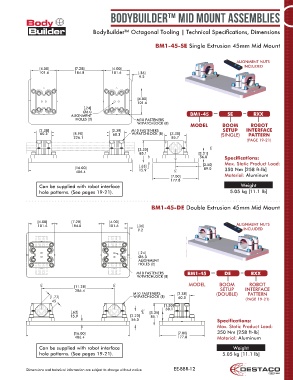

Page 12 - Destaco - BodyBuilder End Effector System

BodyBuilder™ Mid Mount Assemblies

BodyBuilder™ Octagonal Tooling | Technical Specifications, Dimensions

BM1-45-SE Single Extrusion 45mm Mid Mount

ALIGNMENT NUTS
INCLUDED
[4.00] [7.28] [4.00]
101.6 184.8 101.6 [.36]
9.2

[4.00]
101.6
[.24]
Ø6.0 BM1-45 SE RXX
ALIGNMENT
HOLES (2) M10 FASTENERS
W/PATCHLOCK (8)
MODEL BOOM ROBOT
[2.38] [2.38] M10 FASTENERS SETUP INTERFACE
60.3 [8.90] 60.3 W/PATCHLOCK (8) [3.38] (SINGLE) PATTERN
226.1 85.7
(PAGE 19-21)
[3.35]
85.1 [2.21]
56.0 Specifications:

[16.00] [.63] [3.50] Max. Static Product Load:
89.0
350 Nm [258 ft-lb]
406.4 15.9
[7.00] Material: Aluminum
177.8
Can be supplied with robot interface Weight
hole patterns. (See pages 19-21). 5.05 kg [11.1 lb]

BM1-45-DE Double Extrusion 45mm Mid Mount

OPTIONAL
[7.28]
[4.00] HOLE PATTERN [4.00]
101.6 184.8 101.6 [.36] ALIGNMENT NUTS
AS SHOWN ON 9.2 INCLUDED
PAGES 16-18
Ø200mm PATTERNS
WILL REQUIRE AN
ADAPTOR
[.24]
Ø6.0
ALIGNMENT
HOLES (2)
M10 FASTENERS BM1-45 DE RXX
W/PATCHLOCK (8)
MODEL BOOM ROBOT
[11.28] SETUP INTERFACE
286.4
M10 FASTENERS [2.38] (DOUBLE) PATTERN
[1.77] W/PATCHLOCK (8) 60.3
45 (PAGE 19-21)
[1.50]
38.1
[.63] [3.35]
15.9 [2.20] 85.1
56.0 Specifications:
Max. Static Product Load:
[16.00] [7.00] 350 Nm [258 ft-lb]
406.4 177.8 Material: Aluminum

Can be supplied with robot interface Weight
hole patterns. (See pages 19-21). 5.05 kg [11.1 lb]

Dimensions and technical information are subject to change without notice EE-BBR-12
