Metal plates Complete stack
M1
Conveyor
Sensor
Light
source
M2
Conveyor
(a)
Ladder logic program
Inputs M2 run time Outputs
L1 M2 TON L2
TIMER ON DELAY EN
Timer T4:1 DN
Stop Time base 1.0 M1
Preset 5
Accumulated 0
Stop Start
Start M2 M1 M2
Photo M1 M2
sensor
T4:1
sensor DN Number of plates
CTU
COUNT-UP COUNTER CU
Counter C5:1 DN
Preset 15
Accumulated 0
C5:1 M2
DN
T4:1 C5:1
RES
DN
Stop
T4:1 T4:1
RES
DN
Stop
(b)

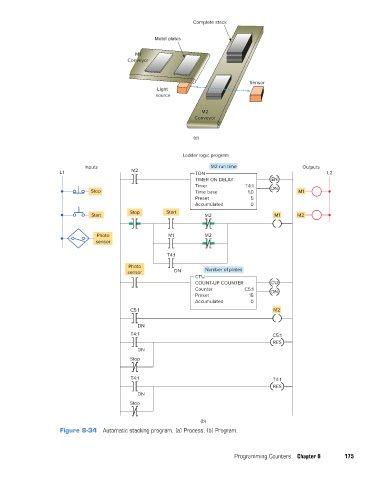

Figure 8-34 Automatic stacking program. (a) Process. (b) Program.
Programming Counters Chapter 8 175
