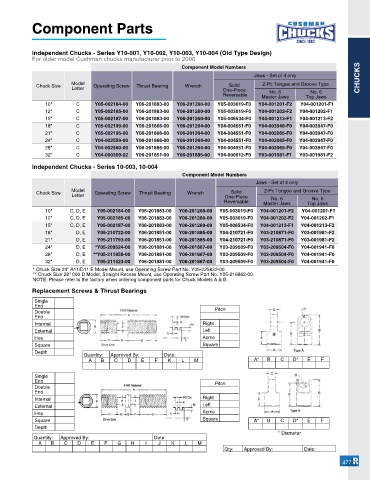

component Parts

independent chucks - series Y10-001, Y10-002, Y10-003, Y10-004 (old Type Design)
For older model Cushman chucks manufacturer prior to 2006
component Model numbers
Jaws - Set of 4 only cHUcKs
Model 2-Pc Tongue and Groove Type
Chuck Size Operating Screw Thrust Bearing Wrench Solid
Letter One-Piece
No. 6
No. 6
Reversable Master Jaws Top Jaws
10" C Y05-002184-00 Y06-201883-00 Y06-201260-00 Y05-003019-F0 Y04-001201-F2 Y04-001201-F1
12" C Y05-002185-00 Y06-201883-00 Y06-201260-00 Y05-003019-F0 Y04-001202-F2 Y04-001202-F1
15" C Y05-002187-00 Y06-201883-00 Y06-201260-00 Y05-006534-F0 Y04-001213-F1 Y04-001213-F2
18" C Y05-002199-00 Y06-201866-00 Y06-201264-00 Y04-004551-F0 Y04-003948-F0 Y04-003947-F0
21" C Y05-002195-00 Y06-201866-00 Y06-201264-00 Y04-004551-F0 Y04-002065-F0 Y04-003947-F0
24" C Y04-002559-00 Y06-201866-00 Y06-201264-00 Y04-004551-F0 Y04-002065-F0 Y04-003947-F0
28" C Y04-002560-00 Y06-201866-00 Y06-201264-00 Y04-004551-F0 Y04-002065-F0 Y04-003947-F0
32" C Y04-000309-02 Y06-201851-00 Y06-201885-00 Y04-000612-F0 Y03-001981-F1 Y03-001981-F2

independent chucks - series 10-003, 10-004
component Model numbers
Jaws - Set of 4 only
Solid
Chuck Size Model Operating Screw Thrust Bearing Wrench One-Piece 2-Pc Tongue and Groove Type
Letter
No. 6
No. 6
Reversable Master Jaws Top Jaws
10" C, D, E Y05-002184-00 Y06-201883-00 Y06-201260-00 Y05-003019-F0 Y04-001201-F2 Y04-001201-F1
12" C, D, E Y05-002185-00 Y06-201883-00 Y06-201260-00 Y05-003019-F0 Y04-001202-F2 Y04-001202-F1
15" C, D, E Y05-002187-00 Y06-201883-00 Y06-201260-00 Y05-006534-F0 Y04-001213-F1 Y04-001213-F2
18" D, E Y05-210722-00 Y06-201851-00 Y06-201885-00 Y04-210721-F0 Y03-210871-F0 Y03-001981-F2
21" D, E Y05-211793-00 Y06-201851-00 Y06-201885-00 Y04-210721-F0 Y03-210871-F0 Y03-001981-F2
24" D, E *Y05-209524-00 Y06-201881-00 Y06-201867-00 Y03-209509-F0 Y03-209504-F0 Y04-001941-F0
28" D, E **Y05-211858-00 Y06-201881-00 Y06-201867-00 Y03-209509-F0 Y03-209504-F0 Y04-001941-F0
32" D, E Y05-211423-00 Y06-201881-00 Y06-201867-00 Y03-209509-F0 Y03-209504-F0 Y04-001941-F0
* Chuck Size 24" A11/D11 E Model Mount, use Operating Screw Part No. Y05-225822-00.
** Chuck Size 28" 000 D Model, Straight Recess Mount, use Operating Screw Part No. Y05-216862-00.
NOTE: Please refer to the factory when ordering component parts for Chuck Models A & B.
replacement screws & Thrust Bearings

Single
End Pitch
Double
End
Internal Right
External Left
Hex Acme
Square Square
Depth
Quantity: Approved By: Date:
A B C D E F K L M A* B C D* E F

Single
End Pitch
Double
End
Internal Right
External Left
Hex Acme
Square Square A* B C D* E F
Depth
* Diameter
Quantity: Approved By: Date:
A B C D E F G H I J K L M
Qty: Approved By: Date:
