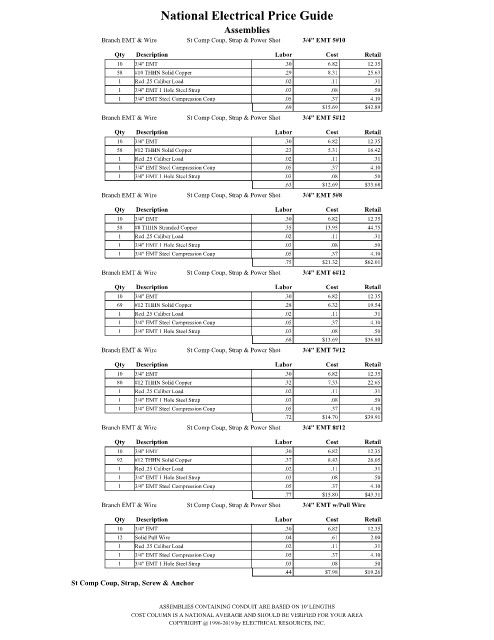

Page 1451 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 5#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #10 THHN Solid Copper .29 8.31 25.63
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.69 $15.69 $42.89
Branch EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 5#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #12 THHN Solid Copper .23 5.31 16.42
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.63 $12.69 $33.68
Branch EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 5#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #8 THHN Stranded Copper .35 13.95 44.75
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.75 $21.32 $62.01
Branch EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 6#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
69 #12 THHN Solid Copper .28 6.32 19.54
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.68 $13.69 $36.80
Branch EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 7#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
80 #12 THHN Solid Copper .32 7.33 22.65
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.72 $14.70 $39.91
Branch EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT 8#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
92 #12 THHN Solid Copper .37 8.43 26.05
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.77 $15.80 $43.31
Branch EMT & Wire St Comp Coup, Strap & Power Shot 3/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 Red .25 Caliber Load .02 .11 .31
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.44 $7.98 $19.26
St Comp Coup, Strap, Screw & Anchor

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
