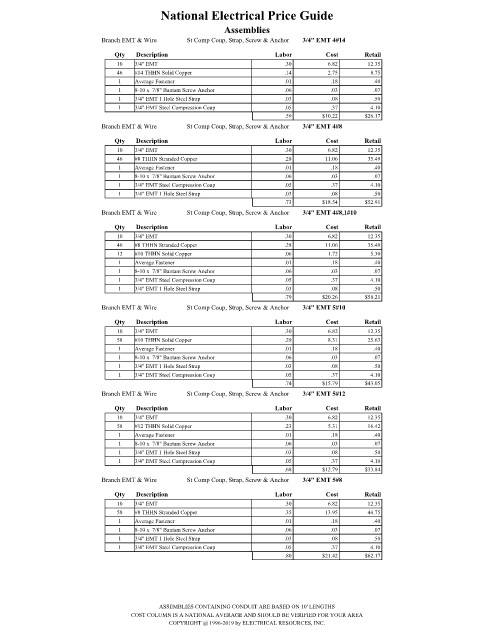

Page 1456 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 4#14
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #14 THHN Solid Copper .14 2.75 8.75
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.59 $10.22 $26.17
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 4#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.73 $18.54 $52.91
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 4#8,1#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
46 #8 THHN Stranded Copper .28 11.06 35.49
12 #10 THHN Solid Copper .06 1.72 5.30
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.79 $20.26 $58.21
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 5#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #10 THHN Solid Copper .29 8.31 25.63
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.74 $15.79 $43.05
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 5#12

Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #12 THHN Solid Copper .23 5.31 16.42
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.68 $12.79 $33.84
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 5#8
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
58 #8 THHN Stranded Copper .35 13.95 44.75
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.80 $21.42 $62.17

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
