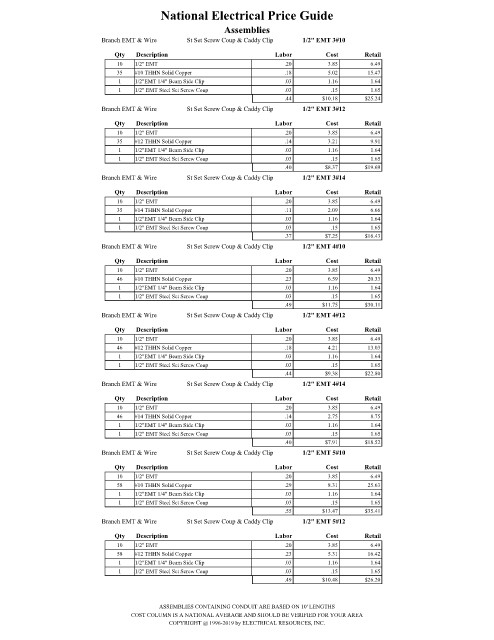

Page 1458 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 3#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #10 THHN Solid Copper .18 5.02 15.47
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.44 $10.18 $25.24
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 3#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #12 THHN Solid Copper .14 3.21 9.91
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.40 $8.37 $19.69
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 3#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
35 #14 THHN Solid Copper .11 2.09 6.66
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.37 $7.25 $16.43
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 4#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #10 THHN Solid Copper .23 6.59 20.33
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.49 $11.75 $30.11
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 4#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #12 THHN Solid Copper .18 4.21 13.03
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.44 $9.38 $22.80
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 4#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
46 #14 THHN Solid Copper .14 2.75 8.75
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.40 $7.91 $18.52
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 5#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #10 THHN Solid Copper .29 8.31 25.63
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.55 $13.47 $35.41
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 5#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
58 #12 THHN Solid Copper .23 5.31 16.42
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.49 $10.48 $26.20

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
