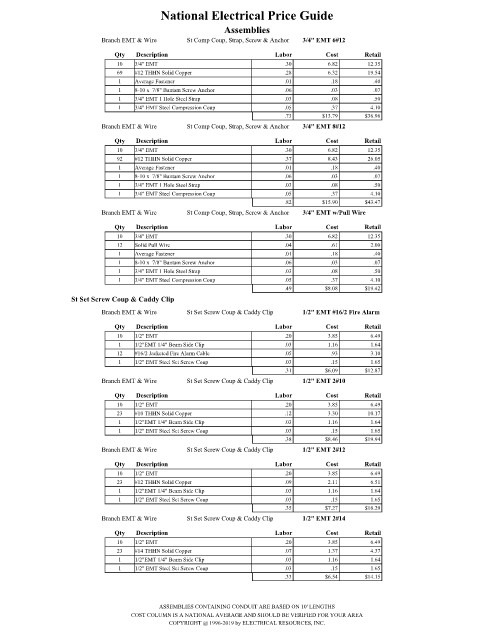

Page 1457 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 6#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
69 #12 THHN Solid Copper .28 6.32 19.54
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.73 $13.79 $36.96
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 8#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
92 #12 THHN Solid Copper .37 8.43 26.05
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.82 $15.90 $43.47
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
12 Solid Pull Wire .04 .61 2.00
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
1 3/4" EMT Steel Compression Coup .05 .37 4.10
.49 $8.08 $19.42
St Set Screw Coup & Caddy Clip
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT #16/2 Fire Alarm
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
12 #16/2 Jacketed Fire Alarm Cable .05 .93 3.10
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.31 $6.09 $12.87
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 2#10

Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #10 THHN Solid Copper .12 3.30 10.17
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.38 $8.46 $19.94
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 2#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #12 THHN Solid Copper .09 2.11 6.51
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.35 $7.27 $16.29
Branch EMT & Wire St Set Screw Coup & Caddy Clip 1/2" EMT 2#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
23 #14 THHN Solid Copper .07 1.37 4.37
1 1/2"EMT 1/4" Beam Side Clip .03 1.16 1.64
1 1/2" EMT Steel Set Screw Coup .03 .15 1.65
.33 $6.54 $14.15

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
