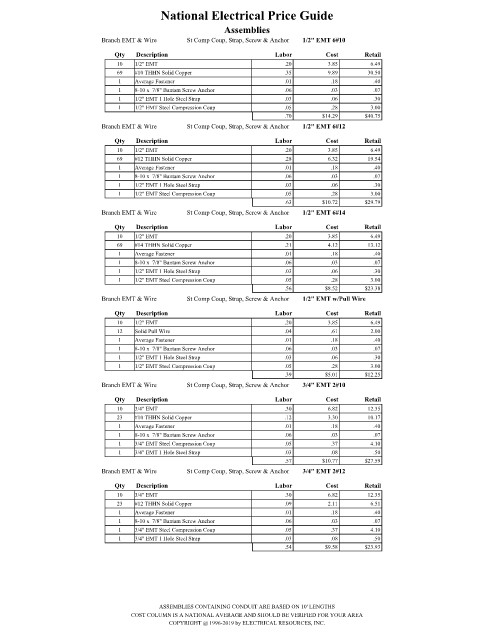

Page 1454 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 1/2" EMT 6#10
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
69 #10 THHN Solid Copper .35 9.89 30.50
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.70 $14.29 $40.75
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 1/2" EMT 6#12
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
69 #12 THHN Solid Copper .28 6.32 19.54
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.63 $10.72 $29.79
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 1/2" EMT 6#14
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
69 #14 THHN Solid Copper .21 4.12 13.12
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.56 $8.52 $23.38
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 1/2" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 1/2" EMT .20 3.85 6.49
12 Solid Pull Wire .04 .61 2.00
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 1/2" EMT 1 Hole Steel Strap .03 .06 .30
1 1/2" EMT Steel Compression Coup .05 .28 3.00
.39 $5.01 $12.25
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 2#10
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
23 #10 THHN Solid Copper .12 3.30 10.17
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.57 $10.77 $27.59
Branch EMT & Wire St Comp Coup, Strap, Screw & Anchor 3/4" EMT 2#12
Qty Description Labor Cost Retail
10 3/4" EMT .30 6.82 12.35
23 #12 THHN Solid Copper .09 2.11 6.51
1 Average Fastener .01 .18 .40
1 8-10 x 7/8" Bantam Screw Anchor .06 .03 .07
1 3/4" EMT Steel Compression Coup .05 .37 4.10
1 3/4" EMT 1 Hole Steel Strap .03 .08 .50
.54 $9.58 $23.93

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
