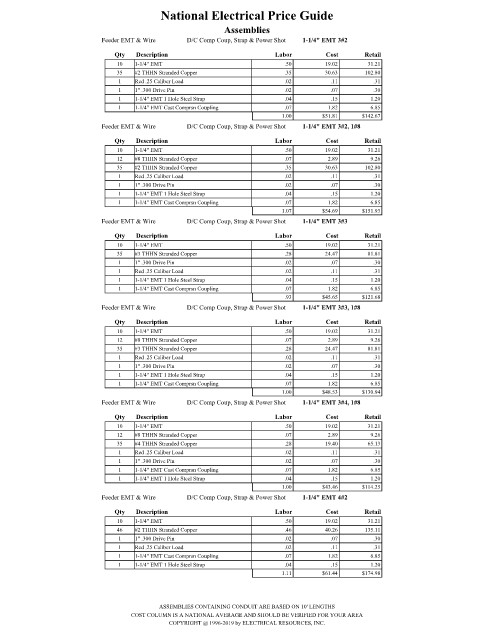

Page 1738 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 1-1/4" EMT 3#2
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #2 THHN Stranded Copper .35 30.63 102.80
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Comprsn Coupling .07 1.82 6.85
1.00 $51.81 $142.67
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 1-1/4" EMT 3#2, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
35 #2 THHN Stranded Copper .35 30.63 102.80
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Comprsn Coupling .07 1.82 6.85
1.07 $54.69 $151.93
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 1-1/4" EMT 3#3
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
35 #3 THHN Stranded Copper .28 24.47 81.81
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Comprsn Coupling .07 1.82 6.85
.93 $45.65 $121.68
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 1-1/4" EMT 3#3, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
35 #3 THHN Stranded Copper .28 24.47 81.81
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Comprsn Coupling .07 1.82 6.85
1.00 $48.53 $130.94
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 1-1/4" EMT 3#4, 1#8
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 #8 THHN Stranded Copper .07 2.89 9.26
35 #4 THHN Stranded Copper .28 19.40 65.13
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 1-1/4" EMT Cast Comprsn Coupling .07 1.82 6.85
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1.00 $43.46 $114.25
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 1-1/4" EMT 4#2

Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
46 #2 THHN Stranded Copper .46 40.26 135.11
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT Cast Comprsn Coupling .07 1.82 6.85
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1.11 $61.44 $174.98

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
