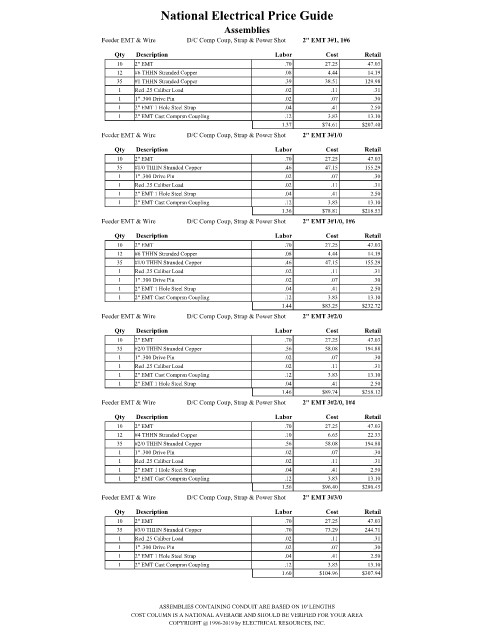

Page 1741 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 3#1, 1#6
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.44 14.19
35 #1 THHN Stranded Copper .39 38.51 129.98
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1.37 $74.61 $207.40
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 3#1/0

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #1/0 THHN Stranded Copper .46 47.15 155.29
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1.36 $78.81 $218.53
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 3#1/0, 1#6
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #6 THHN Stranded Copper .08 4.44 14.19
35 #1/0 THHN Stranded Copper .46 47.15 155.29
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1.44 $83.25 $232.72
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 3#2/0

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #2/0 THHN Stranded Copper .56 58.08 194.88
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.46 $89.74 $258.12
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 3#2/0, 1#4
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
35 #2/0 THHN Stranded Copper .56 58.08 194.88
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1.56 $96.40 $280.45
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 3#3/0

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #3/0 THHN Stranded Copper .70 73.29 244.71
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1.60 $104.96 $307.94

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
