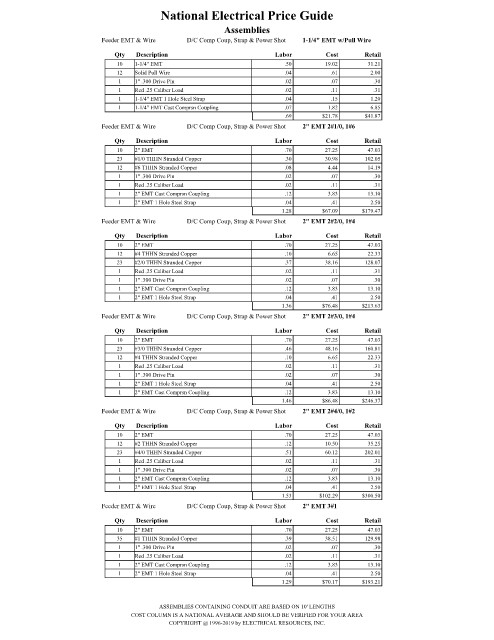

Page 1740 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 1-1/4" EMT w/Pull Wire
Qty Description Labor Cost Retail
10 1-1/4" EMT .50 19.02 31.21
12 Solid Pull Wire .04 .61 2.00
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 1-1/4" EMT 1 Hole Steel Strap .04 .15 1.20
1 1-1/4" EMT Cast Comprsn Coupling .07 1.82 6.85
.69 $21.78 $41.87
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 2#1/0, 1#6
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
23 #1/0 THHN Stranded Copper .30 30.98 102.05
12 #6 THHN Stranded Copper .08 4.44 14.19
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.28 $67.09 $179.47
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 2#2/0, 1#4
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #4 THHN Stranded Copper .10 6.65 22.33
23 #2/0 THHN Stranded Copper .37 38.16 128.07
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.36 $76.48 $213.63
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 2#3/0, 1#4

Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
23 #3/0 THHN Stranded Copper .46 48.16 160.81
12 #4 THHN Stranded Copper .10 6.65 22.33
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1.46 $86.48 $246.37
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 2#4/0, 1#2
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
12 #2 THHN Stranded Copper .12 10.50 35.25
23 #4/0 THHN Stranded Copper .51 60.12 202.01
1 Red .25 Caliber Load .02 .11 .31
1 1" .300 Drive Pin .02 .07 .30
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.53 $102.29 $300.50
Feeder EMT & Wire D/C Comp Coup, Strap & Power Shot 2" EMT 3#1
Qty Description Labor Cost Retail
10 2" EMT .70 27.25 47.03
35 #1 THHN Stranded Copper .39 38.51 129.98
1 1" .300 Drive Pin .02 .07 .30
1 Red .25 Caliber Load .02 .11 .31
1 2" EMT Cast Comprsn Coupling .12 3.83 13.10
1 2" EMT 1 Hole Steel Strap .04 .41 2.50
1.29 $70.17 $193.21

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
