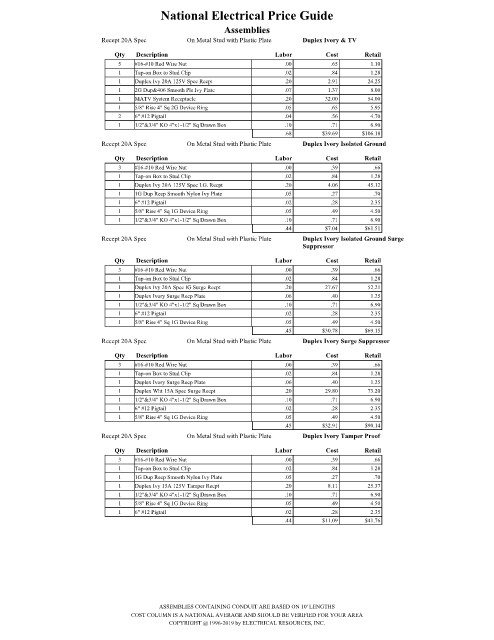

Page 2626 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Spec On Metal Stud with Plastic Plate Duplex Ivory & TV
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Ivy 20A 125V Spec Recpt .20 2.91 24.25
1 2G Dup&406 Smooth Pls Ivy Plate .07 1.37 8.00
1 MATV System Receptacle .20 32.00 54.00
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.68 $39.69 $106.18
Recept 20A Spec On Metal Stud with Plastic Plate Duplex Ivory Isolated Ground
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Ivy 20A 125V Spec I.G. Recpt .20 4.06 45.12
1 1G Dup Recp Smooth Nylon Ivy Plate .05 .27 .70
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.44 $7.04 $61.51
Recept 20A Spec On Metal Stud with Plastic Plate Duplex Ivory Isolated Ground Surge
Suppressor
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Ivy 20A Spec IG Surge Recpt .20 27.67 52.21
1 Duplex Ivory Surge Recp Plate .06 .40 1.25
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $30.78 $69.15
Recept 20A Spec On Metal Stud with Plastic Plate Duplex Ivory Surge Suppressor
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Ivory Surge Recp Plate .06 .40 1.25
1 Duplex Wht 15A Spec Surge Recpt .20 29.80 73.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $32.91 $90.14
Recept 20A Spec On Metal Stud with Plastic Plate Duplex Ivory Tamper Proof
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Dup Recp Smooth Nylon Ivy Plate .05 .27 .70
1 Duplex Ivy 15A 125V Tamper Recpt .20 8.11 25.37
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.44 $11.09 $41.76

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
