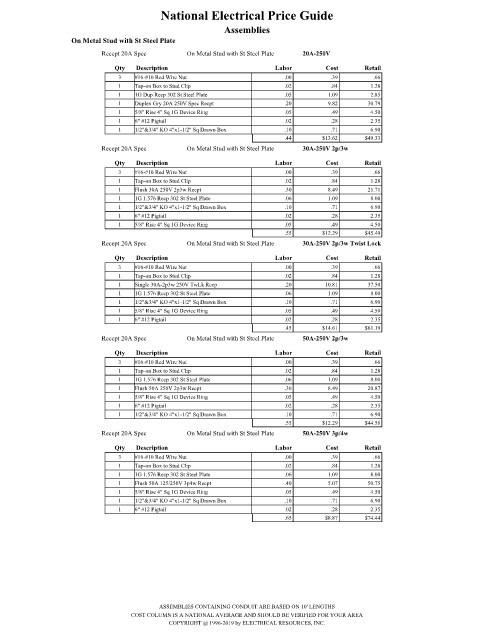

National Electrical Price Guide

Assemblies
On Metal Stud with St Steel Plate
Recept 20A Spec On Metal Stud with St Steel Plate 20A-250V
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 Duplex Gry 20A 250V Spec Recpt .20 9.82 30.79
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.44 $13.62 $49.33
Recept 20A Spec On Metal Stud with St Steel Plate 30A-250V 2p/3w

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Flush 30A 250V 2p3w Recpt .30 8.49 21.71
1 1G 1.576 Recp 302 St Steel Plate .06 1.09 8.00
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.55 $12.29 $45.40
Recept 20A Spec On Metal Stud with St Steel Plate 30A-250V 2p/3w Twist Lock
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Single 30A-2p3w 250V TwLk Recp .20 10.81 37.50
1 1G 1.576 Recp 302 St Steel Plate .06 1.09 8.00
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.45 $14.61 $61.19
Recept 20A Spec On Metal Stud with St Steel Plate 50A-250V 2p/3w
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G 1.576 Recp 302 St Steel Plate .06 1.09 8.00
1 Flush 50A 250V 2p3w Recpt .30 8.49 20.87
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.55 $12.29 $44.56
Recept 20A Spec On Metal Stud with St Steel Plate 50A-250V 3p/4w

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G 1.576 Recp 302 St Steel Plate .06 1.09 8.00
1 Flush 50A 125/250V 3p4w Recpt .40 5.07 50.75
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.65 $8.87 $74.44

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
