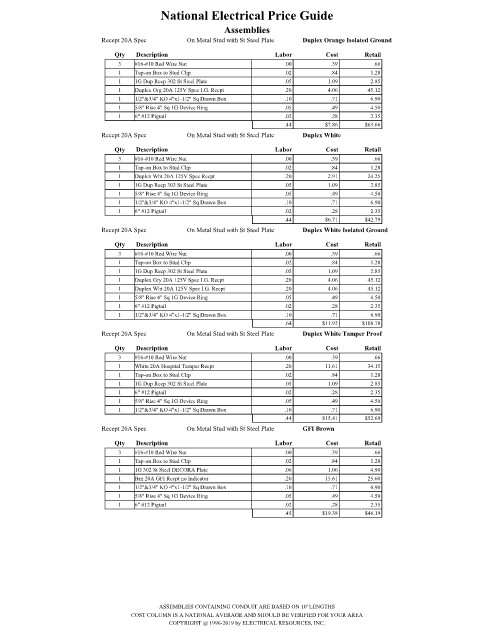

Page 2633 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Spec On Metal Stud with St Steel Plate Duplex Orange Isolated Ground
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 Duplex Org 20A 125V Spec I.G. Recpt .20 4.06 45.12
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.44 $7.86 $63.66
Recept 20A Spec On Metal Stud with St Steel Plate Duplex White

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Wht 20A 125V Spec Recpt .20 2.91 24.25
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.44 $6.71 $42.79
Recept 20A Spec On Metal Stud with St Steel Plate Duplex White Isolated Ground
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 Duplex Gry 20A 125V Spec I.G. Recpt .20 4.06 45.12
1 Duplex Wht 20A 125V Spec I.G. Recpt .20 4.06 45.12
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.64 $11.92 $108.78
Recept 20A Spec On Metal Stud with St Steel Plate Duplex White Tamper Proof
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 White 20A Hospital Tamper Recpt .20 11.61 34.15
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Dup Recp 302 St Steel Plate .05 1.09 2.85
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.44 $15.41 $52.69
Recept 20A Spec On Metal Stud with St Steel Plate GFI Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G 302 St Steel DECORA Plate .06 1.06 4.90
1 Brn 20A GFI Recpt no Indicator .20 15.61 25.60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.45 $19.38 $46.19

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
