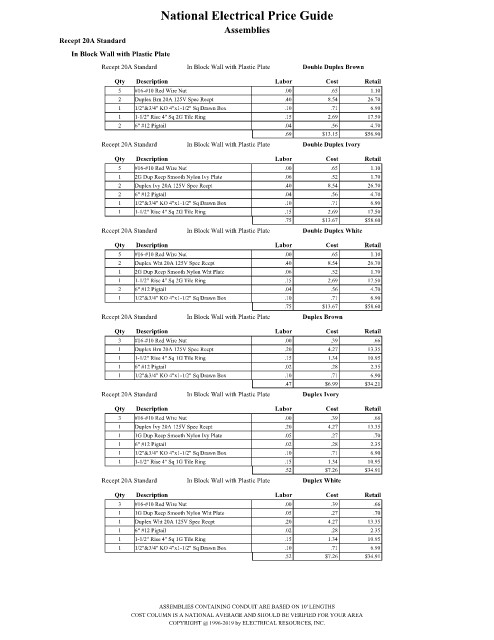

Page 2638 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Standard
In Block Wall with Plastic Plate
Recept 20A Standard In Block Wall with Plastic Plate Double Duplex Brown
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Brn 20A 125V Spec Recpt .40 8.54 26.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
.69 $13.15 $56.90
Recept 20A Standard In Block Wall with Plastic Plate Double Duplex Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Dup Recp Smooth Nylon Ivy Plate .06 .52 1.70
2 Duplex Ivy 20A 125V Spec Recpt .40 8.54 26.70
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.75 $13.67 $58.60
Recept 20A Standard In Block Wall with Plastic Plate Double Duplex White
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Wht 20A 125V Spec Recpt .40 8.54 26.70
1 2G Dup Recp Smooth Nylon Wht Plate .06 .52 1.70
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.75 $13.67 $58.60
Recept 20A Standard In Block Wall with Plastic Plate Duplex Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Brn 20A 125V Spec Recpt .20 4.27 13.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.47 $6.99 $34.21
Recept 20A Standard In Block Wall with Plastic Plate Duplex Ivory

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Ivy 20A 125V Spec Recpt .20 4.27 13.35
1 1G Dup Recp Smooth Nylon Ivy Plate .05 .27 .70
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
.52 $7.26 $34.91
Recept 20A Standard In Block Wall with Plastic Plate Duplex White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Dup Recp Smooth Nylon Wht Plate .05 .27 .70
1 Duplex Wht 20A 125V Spec Recpt .20 4.27 13.35
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.52 $7.26 $34.91

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
