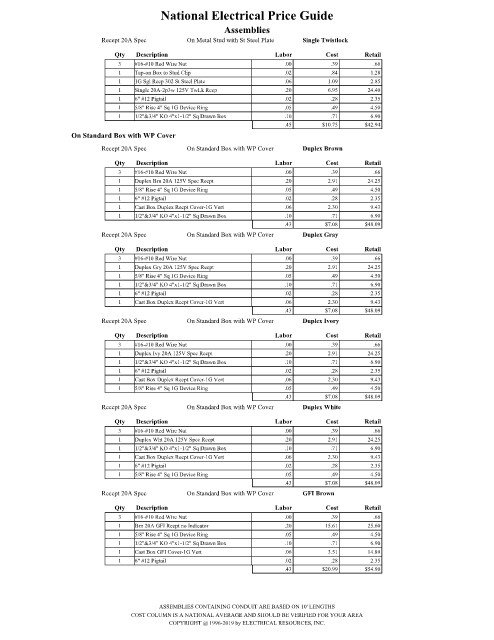

Page 2635 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Spec On Metal Stud with St Steel Plate Single Twistlock
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Sgl Recp 302 St Steel Plate .06 1.09 2.85
1 Single 20A-2p3w 125V TwLk Recp .20 6.95 24.40
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $10.75 $42.94
On Standard Box with WP Cover
Recept 20A Spec On Standard Box with WP Cover Duplex Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Brn 20A 125V Spec Recpt .20 2.91 24.25
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box Duplex Recpt Cover-1G Vert .06 2.30 9.43
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.43 $7.08 $48.09
Recept 20A Spec On Standard Box with WP Cover Duplex Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Gry 20A 125V Spec Recpt .20 2.91 24.25
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box Duplex Recpt Cover-1G Vert .06 2.30 9.43
.43 $7.08 $48.09
Recept 20A Spec On Standard Box with WP Cover Duplex Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Ivy 20A 125V Spec Recpt .20 2.91 24.25
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box Duplex Recpt Cover-1G Vert .06 2.30 9.43
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.43 $7.08 $48.09
Recept 20A Spec On Standard Box with WP Cover Duplex White

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Wht 20A 125V Spec Recpt .20 2.91 24.25
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 Cast Box Duplex Recpt Cover-1G Vert .06 2.30 9.43
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.43 $7.08 $48.09
Recept 20A Spec On Standard Box with WP Cover GFI Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Brn 20A GFI Recpt no Indicator .20 15.61 25.60
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 6" #12 Pigtail .02 .28 2.35
.43 $20.99 $54.90

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
