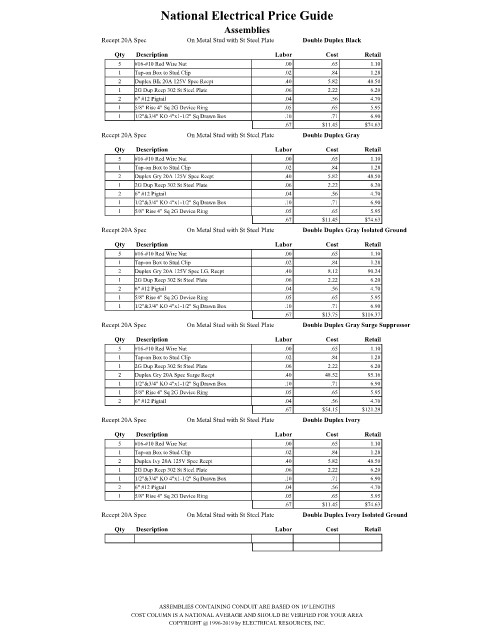

Page 2630 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Spec On Metal Stud with St Steel Plate Double Duplex Black
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 Duplex Blk 20A 125V Spec Recpt .40 5.82 48.50
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.67 $11.45 $74.63
Recept 20A Spec On Metal Stud with St Steel Plate Double Duplex Gray

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 Duplex Gry 20A 125V Spec Recpt .40 5.82 48.50
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
.67 $11.45 $74.63
Recept 20A Spec On Metal Stud with St Steel Plate Double Duplex Gray Isolated Ground
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 Duplex Gry 20A 125V Spec I.G. Recpt .40 8.12 90.24
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.67 $13.75 $116.37
Recept 20A Spec On Metal Stud with St Steel Plate Double Duplex Gray Surge Suppressor
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
2 Duplex Gry 20A Spec Surge Recpt .40 48.52 95.16
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.67 $54.15 $121.29
Recept 20A Spec On Metal Stud with St Steel Plate Double Duplex Ivory

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 Duplex Ivy 20A 125V Spec Recpt .40 5.82 48.50
1 2G Dup Recp 302 St Steel Plate .06 2.22 6.20
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
.67 $11.45 $74.63
Recept 20A Spec On Metal Stud with St Steel Plate Double Duplex Ivory Isolated Ground
Qty Description Labor Cost Retail

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
