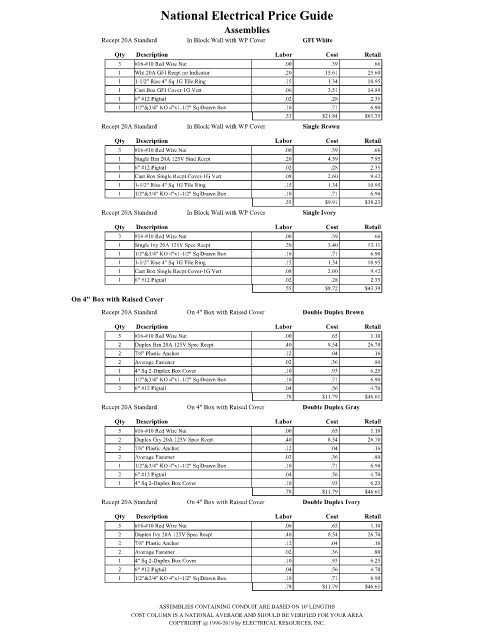

Page 2642 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Standard In Block Wall with WP Cover GFI White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Wht 20A GFI Recpt no Indicator .20 15.61 25.60
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.53 $21.84 $61.35
Recept 20A Standard In Block Wall with WP Cover Single Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Brn 20A 125V Stnd Recpt .20 4.59 7.95
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box Single Recpt Cover-1G Vert .08 2.60 9.42
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.55 $9.91 $38.23
Recept 20A Standard In Block Wall with WP Cover Single Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Ivy 20A 125V Spec Recpt .20 3.40 13.11
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 Cast Box Single Recpt Cover-1G Vert .08 2.60 9.42
1 6" #12 Pigtail .02 .28 2.35
.55 $8.72 $43.39
On 4" Box with Raised Cover
Recept 20A Standard On 4" Box with Raised Cover Double Duplex Brown
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Brn 20A 125V Spec Recpt .40 8.54 26.70
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq 2-Duplex Box Cover .10 .93 6.25
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.78 $11.79 $46.61
Recept 20A Standard On 4" Box with Raised Cover Double Duplex Gray

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Gry 20A 125V Spec Recpt .40 8.54 26.70
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 4" Sq 2-Duplex Box Cover .10 .93 6.25
.78 $11.79 $46.61
Recept 20A Standard On 4" Box with Raised Cover Double Duplex Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
2 Duplex Ivy 20A 125V Spec Recpt .40 8.54 26.70
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq 2-Duplex Box Cover .10 .93 6.25
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.78 $11.79 $46.61

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
