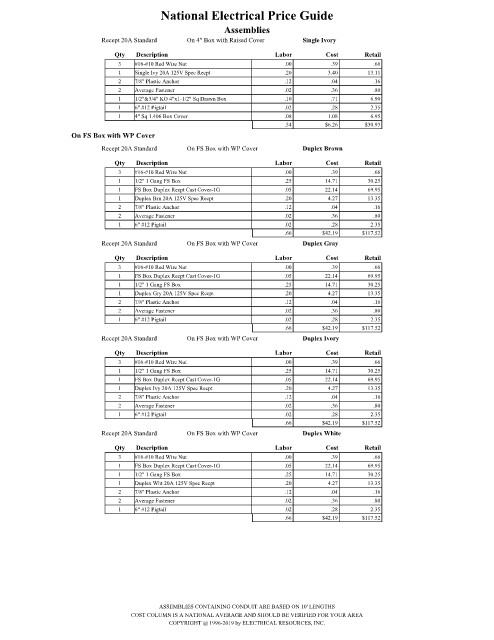

Page 2645 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Standard On 4" Box with Raised Cover Single Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Ivy 20A 125V Spec Recpt .20 3.40 13.11
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 4" Sq 1.406 Box Cover .08 1.08 6.95
.54 $6.26 $30.93
On FS Box with WP Cover
Recept 20A Standard On FS Box with WP Cover Duplex Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 FS Box Duplex Recpt Cast Cover-1G .05 22.14 69.95
1 Duplex Brn 20A 125V Spec Recpt .20 4.27 13.35
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.66 $42.19 $117.52
Recept 20A Standard On FS Box with WP Cover Duplex Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 FS Box Duplex Recpt Cast Cover-1G .05 22.14 69.95
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 Duplex Gry 20A 125V Spec Recpt .20 4.27 13.35
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.66 $42.19 $117.52
Recept 20A Standard On FS Box with WP Cover Duplex Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 FS Box Duplex Recpt Cast Cover-1G .05 22.14 69.95
1 Duplex Ivy 20A 125V Spec Recpt .20 4.27 13.35
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.66 $42.19 $117.52
Recept 20A Standard On FS Box with WP Cover Duplex White

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 FS Box Duplex Recpt Cast Cover-1G .05 22.14 69.95
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 Duplex Wht 20A 125V Spec Recpt .20 4.27 13.35
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.66 $42.19 $117.52

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
