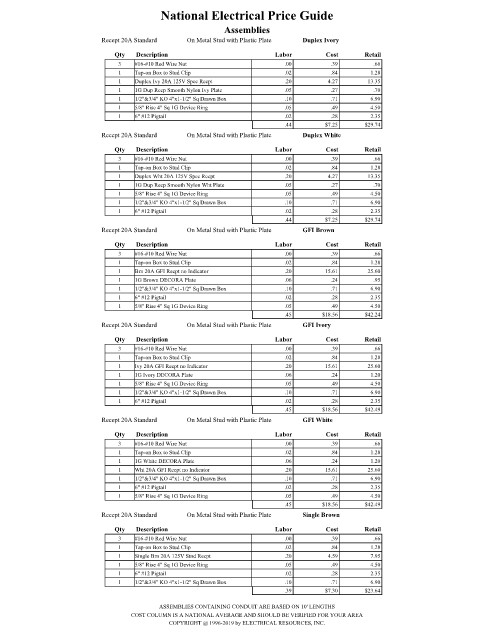

National Electrical Price Guide

Assemblies
Recept 20A Standard On Metal Stud with Plastic Plate Duplex Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Ivy 20A 125V Spec Recpt .20 4.27 13.35
1 1G Dup Recp Smooth Nylon Ivy Plate .05 .27 .70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.44 $7.25 $29.74
Recept 20A Standard On Metal Stud with Plastic Plate Duplex White

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Wht 20A 125V Spec Recpt .20 4.27 13.35
1 1G Dup Recp Smooth Nylon Wht Plate .05 .27 .70
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.44 $7.25 $29.74
Recept 20A Standard On Metal Stud with Plastic Plate GFI Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Brn 20A GFI Recpt no Indicator .20 15.61 25.60
1 1G Brown DECORA Plate .06 .24 .95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $18.56 $42.24
Recept 20A Standard On Metal Stud with Plastic Plate GFI Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Ivy 20A GFI Recpt no Indicator .20 15.61 25.60
1 1G Ivory DECORA Plate .06 .24 1.20
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.45 $18.56 $42.49
Recept 20A Standard On Metal Stud with Plastic Plate GFI White

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G White DECORA Plate .06 .24 1.20
1 Wht 20A GFI Recpt no Indicator .20 15.61 25.60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.45 $18.56 $42.49
Recept 20A Standard On Metal Stud with Plastic Plate Single Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Single Brn 20A 125V Stnd Recpt .20 4.59 7.95
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.39 $7.30 $23.64
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
