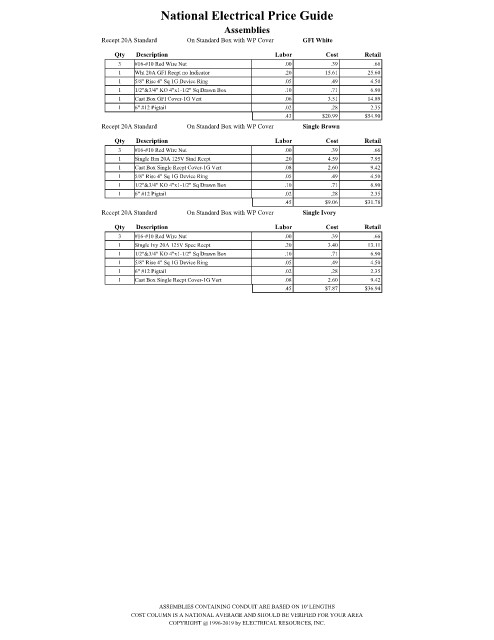

Page 2651 - National Electrical Price Guide
P. 2651
National Electrical Price Guide
Assemblies
Recept 20A Standard On Standard Box with WP Cover GFI White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Wht 20A GFI Recpt no Indicator .20 15.61 25.60
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 6" #12 Pigtail .02 .28 2.35
.43 $20.99 $54.90
Recept 20A Standard On Standard Box with WP Cover Single Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Brn 20A 125V Stnd Recpt .20 4.59 7.95
1 Cast Box Single Recpt Cover-1G Vert .08 2.60 9.42
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.45 $9.06 $31.78
Recept 20A Standard On Standard Box with WP Cover Single Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Ivy 20A 125V Spec Recpt .20 3.40 13.11
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box Single Recpt Cover-1G Vert .08 2.60 9.42
.45 $7.87 $36.94
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
