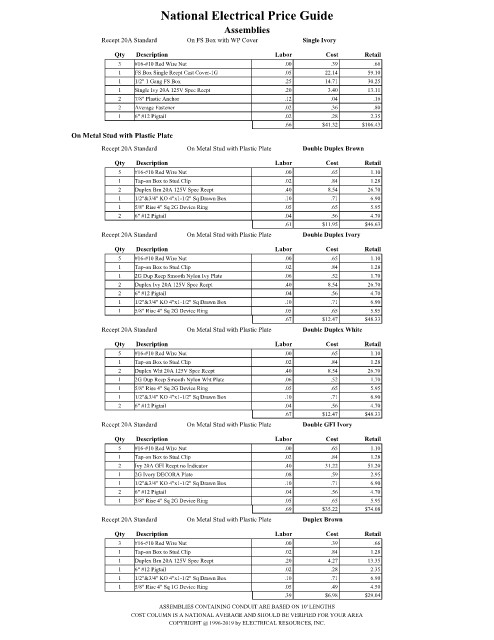

Page 2647 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Standard On FS Box with WP Cover Single Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 FS Box Single Recpt Cast Cover-1G .05 22.14 59.10
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 Single Ivy 20A 125V Spec Recpt .20 3.40 13.11
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.66 $41.32 $106.43
On Metal Stud with Plastic Plate
Recept 20A Standard On Metal Stud with Plastic Plate Double Duplex Brown

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 Duplex Brn 20A 125V Spec Recpt .40 8.54 26.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.61 $11.95 $46.63
Recept 20A Standard On Metal Stud with Plastic Plate Double Duplex Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Dup Recp Smooth Nylon Ivy Plate .06 .52 1.70
2 Duplex Ivy 20A 125V Spec Recpt .40 8.54 26.70
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
.67 $12.47 $48.33
Recept 20A Standard On Metal Stud with Plastic Plate Double Duplex White

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 Duplex Wht 20A 125V Spec Recpt .40 8.54 26.70
1 2G Dup Recp Smooth Nylon Wht Plate .06 .52 1.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
.67 $12.47 $48.33
Recept 20A Standard On Metal Stud with Plastic Plate Double GFI Ivory
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 Ivy 20A GFI Recpt no Indicator .40 31.22 51.20
1 2G Ivory DECORA Plate .08 .59 2.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
.69 $35.22 $74.08
Recept 20A Standard On Metal Stud with Plastic Plate Duplex Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 Duplex Brn 20A 125V Spec Recpt .20 4.27 13.35
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.39 $6.98 $29.04
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
