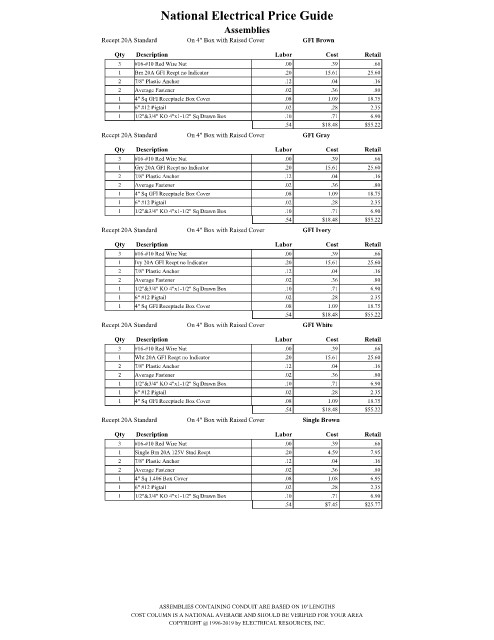

Page 2644 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Standard On 4" Box with Raised Cover GFI Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Brn 20A GFI Recpt no Indicator .20 15.61 25.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq GFI Receptacle Box Cover .08 1.09 18.75
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.54 $18.48 $55.22
Recept 20A Standard On 4" Box with Raised Cover GFI Gray

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Gry 20A GFI Recpt no Indicator .20 15.61 25.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq GFI Receptacle Box Cover .08 1.09 18.75
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.54 $18.48 $55.22
Recept 20A Standard On 4" Box with Raised Cover GFI Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Ivy 20A GFI Recpt no Indicator .20 15.61 25.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 4" Sq GFI Receptacle Box Cover .08 1.09 18.75
.54 $18.48 $55.22
Recept 20A Standard On 4" Box with Raised Cover GFI White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Wht 20A GFI Recpt no Indicator .20 15.61 25.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 4" Sq GFI Receptacle Box Cover .08 1.09 18.75
.54 $18.48 $55.22
Recept 20A Standard On 4" Box with Raised Cover Single Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Single Brn 20A 125V Stnd Recpt .20 4.59 7.95
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 4" Sq 1.406 Box Cover .08 1.08 6.95
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.54 $7.45 $25.77

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
