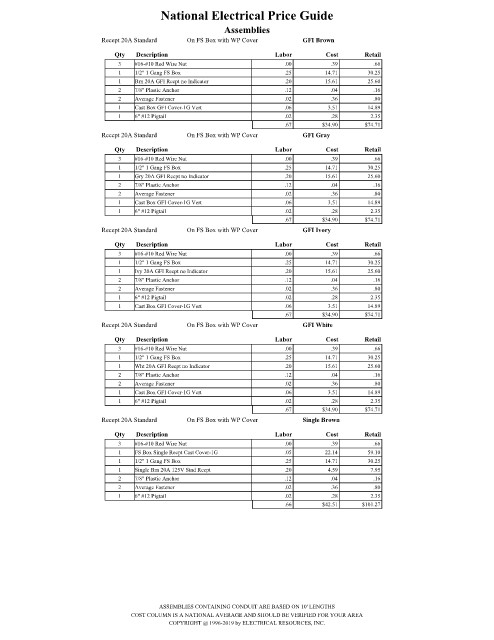

Page 2646 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Standard On FS Box with WP Cover GFI Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 Brn 20A GFI Recpt no Indicator .20 15.61 25.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 6" #12 Pigtail .02 .28 2.35
.67 $34.90 $74.71
Recept 20A Standard On FS Box with WP Cover GFI Gray

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 Gry 20A GFI Recpt no Indicator .20 15.61 25.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 6" #12 Pigtail .02 .28 2.35
.67 $34.90 $74.71
Recept 20A Standard On FS Box with WP Cover GFI Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 Ivy 20A GFI Recpt no Indicator .20 15.61 25.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
.67 $34.90 $74.71
Recept 20A Standard On FS Box with WP Cover GFI White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 Wht 20A GFI Recpt no Indicator .20 15.61 25.60
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 6" #12 Pigtail .02 .28 2.35
.67 $34.90 $74.71
Recept 20A Standard On FS Box with WP Cover Single Brown

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 FS Box Single Recpt Cast Cover-1G .05 22.14 59.10
1 1/2" 1 Gang FS Box .25 14.71 30.25
1 Single Brn 20A 125V Stnd Recpt .20 4.59 7.95
2 7/8" Plastic Anchor .12 .04 .16
2 Average Fastener .02 .36 .80
1 6" #12 Pigtail .02 .28 2.35
.66 $42.51 $101.27

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
