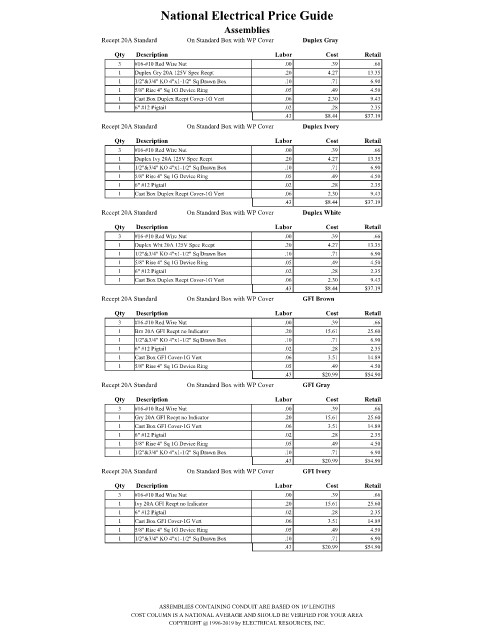

Page 2650 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Recept 20A Standard On Standard Box with WP Cover Duplex Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Gry 20A 125V Spec Recpt .20 4.27 13.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 Cast Box Duplex Recpt Cover-1G Vert .06 2.30 9.43
1 6" #12 Pigtail .02 .28 2.35
.43 $8.44 $37.19
Recept 20A Standard On Standard Box with WP Cover Duplex Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Ivy 20A 125V Spec Recpt .20 4.27 13.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box Duplex Recpt Cover-1G Vert .06 2.30 9.43
.43 $8.44 $37.19
Recept 20A Standard On Standard Box with WP Cover Duplex White
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Duplex Wht 20A 125V Spec Recpt .20 4.27 13.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box Duplex Recpt Cover-1G Vert .06 2.30 9.43
.43 $8.44 $37.19
Recept 20A Standard On Standard Box with WP Cover GFI Brown
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Brn 20A GFI Recpt no Indicator .20 15.61 25.60
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
.43 $20.99 $54.90
Recept 20A Standard On Standard Box with WP Cover GFI Gray
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Gry 20A GFI Recpt no Indicator .20 15.61 25.60
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 6" #12 Pigtail .02 .28 2.35
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.43 $20.99 $54.90
Recept 20A Standard On Standard Box with WP Cover GFI Ivory
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Ivy 20A GFI Recpt no Indicator .20 15.61 25.60
1 6" #12 Pigtail .02 .28 2.35
1 Cast Box GFI Cover-1G Vert .06 3.51 14.89
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.43 $20.99 $54.90

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
