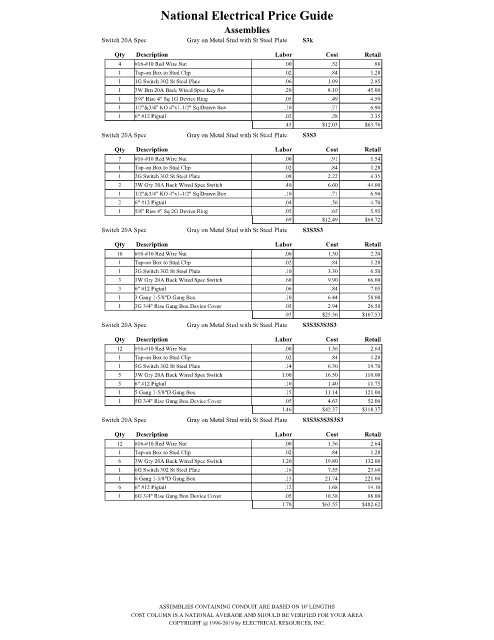

Page 2737 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Spec Gray on Metal Stud with St Steel Plate S3k
Qty Description Labor Cost Retail
4 #16-#10 Red Wire Nut .00 .52 .88
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 3W Brn 20A Back Wired Spec Key Sw .20 8.10 45.00
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.45 $12.03 $63.76
Switch 20A Spec Gray on Metal Stud with St Steel Plate S3S3

Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G Switch 302 St Steel Plate .08 2.22 4.35
2 3W Gry 20A Back Wired Spec Switch .40 6.60 44.00
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
.69 $12.49 $68.72
Switch 20A Spec Gray on Metal Stud with St Steel Plate S3S3S3
Qty Description Labor Cost Retail
10 #16-#10 Red Wire Nut .00 1.30 2.20
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3G Switch 302 St Steel Plate .10 3.30 6.50
3 3W Gry 20A Back Wired Spec Switch .60 9.90 66.00
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
.93 $25.56 $167.53
Switch 20A Spec Gray on Metal Stud with St Steel Plate S3S3S3S3S3
Qty Description Labor Cost Retail
12 #16-#10 Red Wire Nut .00 1.56 2.64
1 Tap-on Box to Stud Clip .02 .84 1.28
1 5G Switch 302 St Steel Plate .14 6.30 19.70
5 3W Gry 20A Back Wired Spec Switch 1.00 16.50 110.00
5 6" #12 Pigtail .10 1.40 11.75
1 5 Gang 1-5/8"D Gang Box .15 11.14 121.00
1 5G 3/4" Rise Gang Box Device Cover .05 4.63 52.00
1.46 $42.37 $318.37
Switch 20A Spec Gray on Metal Stud with St Steel Plate S3S3S3S3S3S3

Qty Description Labor Cost Retail
12 #16-#10 Red Wire Nut .00 1.56 2.64
1 Tap-on Box to Stud Clip .02 .84 1.28
6 3W Gry 20A Back Wired Spec Switch 1.20 19.80 132.00
1 6G Switch 302 St Steel Plate .16 7.55 23.60
1 6 Gang 1-5/8"D Gang Box .15 21.74 221.00
6 6" #12 Pigtail .12 1.68 14.10
1 6G 3/4" Rise Gang Box Device Cover .05 10.38 88.00
1.70 $63.55 $482.62

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
