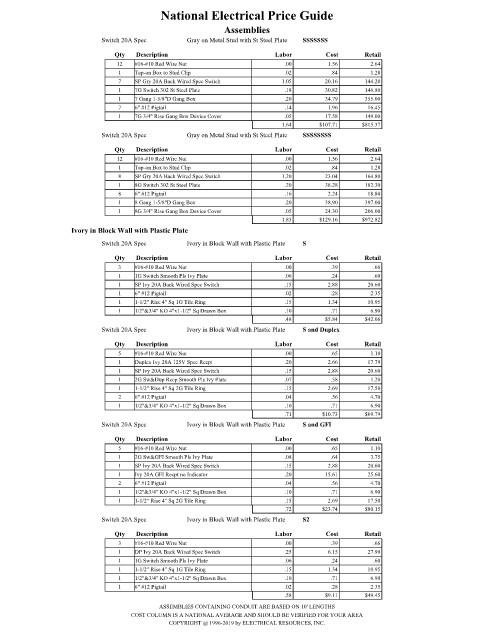

Page 2742 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Spec Gray on Metal Stud with St Steel Plate SSSSSSS
Qty Description Labor Cost Retail
12 #16-#10 Red Wire Nut .00 1.56 2.64
1 Tap-on Box to Stud Clip .02 .84 1.28
7 SP Gry 20A Back Wired Spec Switch 1.05 20.16 144.20
1 7G Switch 302 St Steel Plate .18 30.82 146.80
1 7 Gang 1-5/8"D Gang Box .20 34.79 355.00
7 6" #12 Pigtail .14 1.96 16.45
1 7G 3/4" Rise Gang Box Device Cover .05 17.58 149.00
1.64 $107.71 $815.37
Switch 20A Spec Gray on Metal Stud with St Steel Plate SSSSSSSS

Qty Description Labor Cost Retail
12 #16-#10 Red Wire Nut .00 1.56 2.64
1 Tap-on Box to Stud Clip .02 .84 1.28
8 SP Gry 20A Back Wired Spec Switch 1.20 23.04 164.80
1 8G Switch 302 St Steel Plate .20 38.28 182.30
8 6" #12 Pigtail .16 2.24 18.80
1 8 Gang 1-5/8"D Gang Box .20 38.90 397.00
1 8G 3/4" Rise Gang Box Device Cover .05 24.30 206.00
1.83 $129.16 $972.82
Ivory in Block Wall with Plastic Plate
Switch 20A Spec Ivory in Block Wall with Plastic Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 SP Ivy 20A Back Wired Spec Switch .15 2.88 20.60
1 6" #12 Pigtail .02 .28 2.35
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.48 $5.84 $42.06
Switch 20A Spec Ivory in Block Wall with Plastic Plate S and Duplex

Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Duplex Ivy 20A 125V Spec Recpt .20 2.66 17.79
1 SP Ivy 20A Back Wired Spec Switch .15 2.88 20.60
1 2G Sw&Dup Recp Smooth Pls Ivy Plate .07 .58 1.20
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.71 $10.73 $69.79
Switch 20A Spec Ivory in Block Wall with Plastic Plate S and GFI
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 2G Sw&GFI Smooth Pls Ivy Plate .08 .64 3.75
1 SP Ivy 20A Back Wired Spec Switch .15 2.88 20.60
1 Ivy 20A GFI Recpt no Indicator .20 15.61 25.60
2 6" #12 Pigtail .04 .56 4.70
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 1-1/2" Rise 4" Sq 2G Tile Ring .15 2.69 17.50
.72 $23.74 $80.15
Switch 20A Spec Ivory in Block Wall with Plastic Plate S2
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 DP Ivy 20A Back Wired Spec Switch .25 6.15 27.99
1 1G Switch Smooth Pls Ivy Plate .06 .24 .60
1 1-1/2" Rise 4" Sq 1G Tile Ring .15 1.34 10.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.58 $9.11 $49.45
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
