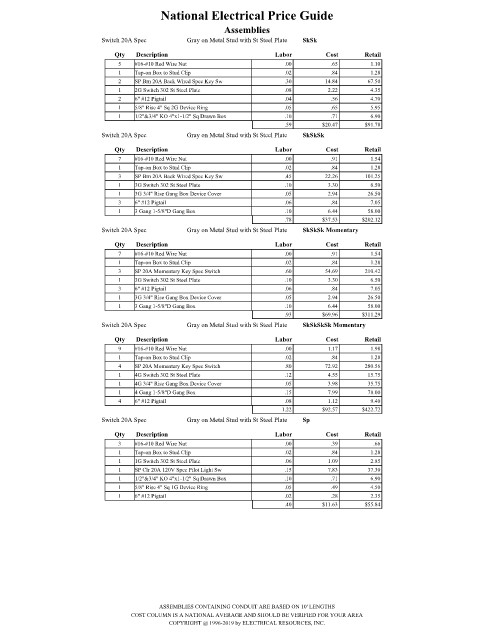

Page 2739 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Spec Gray on Metal Stud with St Steel Plate SkSk
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 SP Brn 20A Back Wired Spec Key Sw .30 14.84 67.50
1 2G Switch 302 St Steel Plate .08 2.22 4.35
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.59 $20.47 $91.78
Switch 20A Spec Gray on Metal Stud with St Steel Plate SkSkSk

Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
3 SP Brn 20A Back Wired Spec Key Sw .45 22.26 101.25
1 3G Switch 302 St Steel Plate .10 3.30 6.50
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
.78 $37.53 $202.12
Switch 20A Spec Gray on Metal Stud with St Steel Plate SkSkSk Momentary
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
3 SP 20A Momentary Key Spec Switch .60 54.69 210.42
1 3G Switch 302 St Steel Plate .10 3.30 6.50
3 6" #12 Pigtail .06 .84 7.05
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
.93 $69.96 $311.29
Switch 20A Spec Gray on Metal Stud with St Steel Plate SkSkSkSk Momentary
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 Tap-on Box to Stud Clip .02 .84 1.28
4 SP 20A Momentary Key Spec Switch .80 72.92 280.56
1 4G Switch 302 St Steel Plate .12 4.55 15.75
1 4G 3/4" Rise Gang Box Device Cover .05 3.98 35.75
1 4 Gang 1-5/8"D Gang Box .15 7.99 78.00
4 6" #12 Pigtail .08 1.12 9.40
1.22 $92.57 $422.72
Switch 20A Spec Gray on Metal Stud with St Steel Plate Sp

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 SP Clr 20A 120V Spec Pilot Light Sw .15 7.83 37.30
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.40 $11.63 $55.84

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
