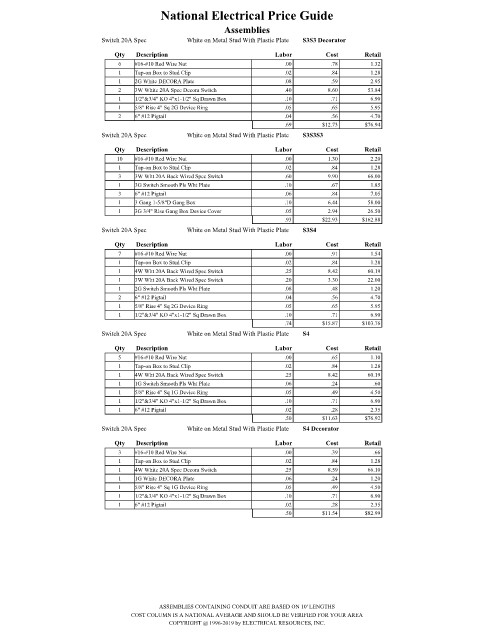

Page 2776 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
Switch 20A Spec White on Metal Stud With Plastic Plate S3S3 Decorator
Qty Description Labor Cost Retail
6 #16-#10 Red Wire Nut .00 .78 1.32
1 Tap-on Box to Stud Clip .02 .84 1.28
1 2G White DECORA Plate .08 .59 2.95
2 3W White 20A Spec Decora Switch .40 8.60 53.84
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.69 $12.73 $76.94
Switch 20A Spec White on Metal Stud With Plastic Plate S3S3S3

Qty Description Labor Cost Retail
10 #16-#10 Red Wire Nut .00 1.30 2.20
1 Tap-on Box to Stud Clip .02 .84 1.28
3 3W Wht 20A Back Wired Spec Switch .60 9.90 66.00
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
.93 $22.93 $162.88
Switch 20A Spec White on Metal Stud With Plastic Plate S3S4
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
1 4W Wht 20A Back Wired Spec Switch .25 8.42 60.19
1 3W Wht 20A Back Wired Spec Switch .20 3.30 22.00
1 2G Switch Smooth Pls Wht Plate .08 .48 1.20
2 6" #12 Pigtail .04 .56 4.70
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.74 $15.87 $103.76
Switch 20A Spec White on Metal Stud With Plastic Plate S4
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
1 4W Wht 20A Back Wired Spec Switch .25 8.42 60.19
1 1G Switch Smooth Pls Wht Plate .06 .24 .60
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.50 $11.63 $76.92
Switch 20A Spec White on Metal Stud With Plastic Plate S4 Decorator
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 4W White 20A Spec Decora Switch .25 8.59 66.10
1 1G White DECORA Plate .06 .24 1.20
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.50 $11.54 $82.99

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
