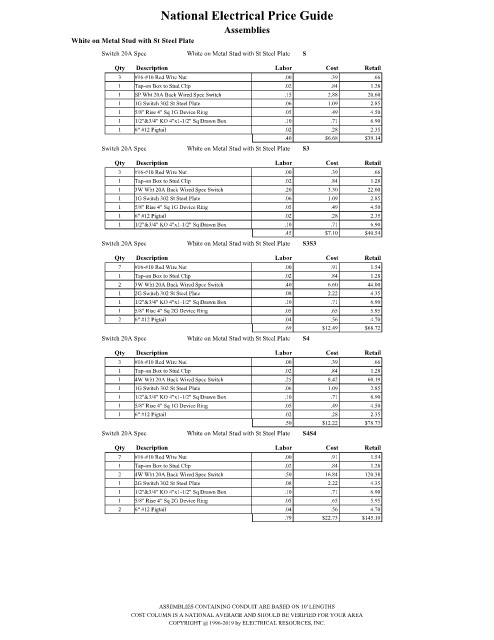

Page 2780 - National Electrical Price Guide

National Electrical Price Guide

Assemblies
White on Metal Stud with St Steel Plate
Switch 20A Spec White on Metal Stud with St Steel Plate S
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 SP Wht 20A Back Wired Spec Switch .15 2.88 20.60
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 6" #12 Pigtail .02 .28 2.35
.40 $6.68 $39.14
Switch 20A Spec White on Metal Stud with St Steel Plate S3

Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3W Wht 20A Back Wired Spec Switch .20 3.30 22.00
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
.45 $7.10 $40.54
Switch 20A Spec White on Metal Stud with St Steel Plate S3S3
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
2 3W Wht 20A Back Wired Spec Switch .40 6.60 44.00
1 2G Switch 302 St Steel Plate .08 2.22 4.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.69 $12.49 $68.72
Switch 20A Spec White on Metal Stud with St Steel Plate S4
Qty Description Labor Cost Retail
3 #16-#10 Red Wire Nut .00 .39 .66
1 Tap-on Box to Stud Clip .02 .84 1.28
1 4W Wht 20A Back Wired Spec Switch .25 8.42 60.19
1 1G Switch 302 St Steel Plate .06 1.09 2.85
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 1G Device Ring .05 .49 4.50
1 6" #12 Pigtail .02 .28 2.35
.50 $12.22 $78.73
Switch 20A Spec White on Metal Stud with St Steel Plate S4S4

Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
2 4W Wht 20A Back Wired Spec Switch .50 16.84 120.38
1 2G Switch 302 St Steel Plate .08 2.22 4.35
1 1/2"&3/4" KO 4"x1-1/2" Sq Drawn Box .10 .71 6.90
1 5/8" Rise 4" Sq 2G Device Ring .05 .65 5.95
2 6" #12 Pigtail .04 .56 4.70
.79 $22.73 $145.10

ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
