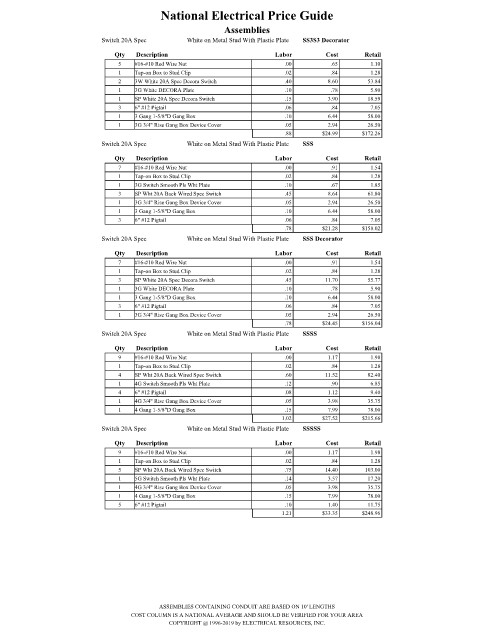

Page 2778 - National Electrical Price Guide
P. 2778
National Electrical Price Guide
Assemblies
Switch 20A Spec White on Metal Stud With Plastic Plate SS3S3 Decorator
Qty Description Labor Cost Retail
5 #16-#10 Red Wire Nut .00 .65 1.10
1 Tap-on Box to Stud Clip .02 .84 1.28
2 3W White 20A Spec Decora Switch .40 8.60 53.84
1 3G White DECORA Plate .10 .78 5.90
1 SP White 20A Spec Decora Switch .15 3.90 18.59
3 6" #12 Pigtail .06 .84 7.05
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
.88 $24.99 $172.26
Switch 20A Spec White on Metal Stud With Plastic Plate SSS
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
1 3G Switch Smooth Pls Wht Plate .10 .67 1.85
3 SP Wht 20A Back Wired Spec Switch .45 8.64 61.80
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
3 6" #12 Pigtail .06 .84 7.05
.78 $21.28 $158.02
Switch 20A Spec White on Metal Stud With Plastic Plate SSS Decorator
Qty Description Labor Cost Retail
7 #16-#10 Red Wire Nut .00 .91 1.54
1 Tap-on Box to Stud Clip .02 .84 1.28
3 SP White 20A Spec Decora Switch .45 11.70 55.77
1 3G White DECORA Plate .10 .78 5.90
1 3 Gang 1-5/8"D Gang Box .10 6.44 58.00
3 6" #12 Pigtail .06 .84 7.05
1 3G 3/4" Rise Gang Box Device Cover .05 2.94 26.50
.78 $24.45 $156.04
Switch 20A Spec White on Metal Stud With Plastic Plate SSSS
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 Tap-on Box to Stud Clip .02 .84 1.28
4 SP Wht 20A Back Wired Spec Switch .60 11.52 82.40
1 4G Switch Smooth Pls Wht Plate .12 .90 6.85
4 6" #12 Pigtail .08 1.12 9.40
1 4G 3/4" Rise Gang Box Device Cover .05 3.98 35.75
1 4 Gang 1-5/8"D Gang Box .15 7.99 78.00
1.02 $27.52 $215.66
Switch 20A Spec White on Metal Stud With Plastic Plate SSSSS
Qty Description Labor Cost Retail
9 #16-#10 Red Wire Nut .00 1.17 1.98
1 Tap-on Box to Stud Clip .02 .84 1.28
5 SP Wht 20A Back Wired Spec Switch .75 14.40 103.00
1 5G Switch Smooth Pls Wht Plate .14 3.57 17.20
1 4G 3/4" Rise Gang Box Device Cover .05 3.98 35.75
1 4 Gang 1-5/8"D Gang Box .15 7.99 78.00
5 6" #12 Pigtail .10 1.40 11.75
1.21 $33.35 $248.96
ASSEMBLIES CONTAINING CONDUIT ARE BASED ON 10' LENGTHS
COST COLUMN IS A NATIONAL AVERAGE AND SHOULD BE VERIFIED FOR YOUR AREA
COPYRIGHT @ 1996-2019 by ELECTRICAL RESOURCES, INC.
