FAN-PEDIA PROPELLERS
Published by AEROVENT.COM
Aerovent FIXED TYPE - ROTATION & AIRFLOW
©2017

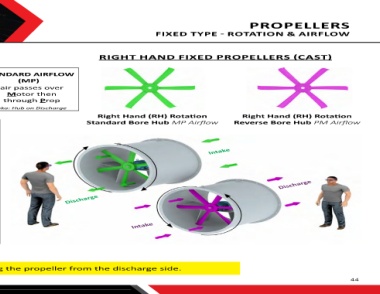

LEFT HAND FIXED PROPELLERS (CAST) RIGHT HAND FIXED PROPELLERS (CAST)

STANDARD AIRFLOW
(MP)
air passes over
Motor then
through Prop
aka: Hub on Discharge
Left Hand (LH) Rotation Left Hand (LH) Rotation Right Hand (RH) Rotation Right Hand (RH) Rotation
Standard Bore Hub MP Airflow Reverse Bore Hub PM Airflow Standard Bore Hub MP Airflow Reverse Bore Hub PM Airflow

Intake Intake

Discharge Discharge
Discharge Discharge

Intake Intake

NOTE - Rotation determined by viewing the propeller from the discharge side.
