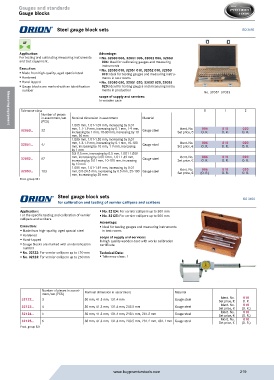

Gauges and standards
Gauge blocks

Steel gauge block sets ISO 3650

Application: Advantage:
For testing and calibrating measuring instruments ƒ No. 32050 006, 32051 006, 32052 006, 32053
and test equipment. 006: Ideal for calibrating gauges and measuring
instruments
Execution: ƒ No. 32050 010, 32051 010, 32052 010, 32053
ƒ Made from high-quality, aged special steel 010: Ideal for testing gauges and measuring instru-
ƒ Hardened ments in test rooms
ƒ Hand-lapped ƒ No. 32050 020, 32051 020, 32052 020, 32053
ƒ Gauge blocks are marked with an identification 020: Ideal for testing gauges and measuring instru-
number ments in production No. 32052–32053
scope of supply and services:
In wooden case
Tolerance class 0 1 2
Number of pieces
in assortment/set Nominal dimension in assortment Material
(PCS)
1.005 mm, 1.01-1.09 mm, increasing by 0.01
Measuring equipment
Ident. No.
006
020
32050... 32 mm, 1.1-1.9 mm, increasing by 0.1 mm, 1-9 mm, Gauge steel Set price, € O. R. 010 O. R.
O. R.
increasing by 1 mm, 10-30 mm, increasing by 10
mm, 50 mm
1.005 mm, 1.01-1.20 mm, increasing by 0.01
006
020
Ident. No.
32051... 47 mm, 1.3-1.9 mm, increasing by 0.1 mm, 10-100 Gauge steel Set price, € O. R. 010 O. R.
mm, increasing by 10 mm, 1-9 mm, increasing
O. R.
by 1 mm
0.5-9.5 mm, increasing by 0.5 mm, 1.001-1.009
020
006
Ident. No.
32052... 87 mm, increasing by 0.001 mm, 1.01-1.49 mm, Gauge steel Set price, € O. R. 010 O. R.
O. R.
increasing by 0.01 mm, 10-100 mm, increasing
by 10 mm
1.005 mm, 1.01-1.49 mm, increasing by 0.01 Ident. No. 006 010 020
32053... 103 mm, 0.5-24.5 mm, increasing by 0.5 mm, 25-100 Gauge steel
mm, increasing by 25 mm Set price, € (O. R.) O. R. O. R.
Prod. group 321
Steel gauge block sets ISO 3650
for calibration and testing of vernier callipers and scribers
Application: ƒ No. 32124: For vernier callipers up to 300 mm
For the specific testing and calibration of vernier ƒ No. 32125: For vernier callipers up to 500 mm
callipers and scribers.
Advantage:
Execution: ƒ Ideal for testing gauges and measuring instruments
ƒ Made from high-quality, aged special steel in test rooms
ƒ Hardened scope of supply and services:
ƒ Hand-lapped In high-quality wooden case with works calibration
ƒ Gauge blocks are marked with an identification certificate
number
ƒ No. 32122: For vernier callipers up to 150 mm Technical Data:
ƒ No. 32123: For vernier callipers up to 250 mm ƒ Tolerance class: 1
Number of pieces in assort- Nominal dimension in assortment Material
ment/set (PCS)
010
Ident. No.
32122... 3 30 mm, 41.3 mm, 131.4 mm Gauge steel Set price, € O. R.
010
Ident. No.
32123... 4 30 mm, 41.3 mm, 131.4 mm, 243.5 mm Gauge steel Set price, € (O. R.)
010
Ident. No.
32124... 5 30 mm, 41.3 mm, 131.4 mm, 243.5 mm, 281.2 mm Gauge steel Set price, € (O. R.)
Ident. No.
010
32125... 6 30 mm, 41.3 mm, 131.4 mm, 243.5 mm, 281.2 mm, 481.1 mm Gauge steel Set price, € (O. R.)
Prod. group 321
