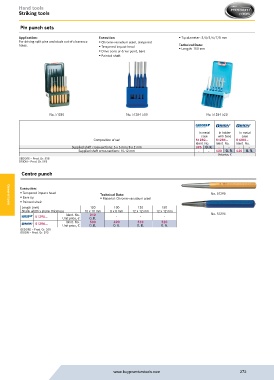

Page 272 - Buy Premium Tools ORION Catalogue

Hand tools
Striking tools

Pin punch sets

Application: Execution: ƒ Tip diameter: 3/4/5/6/7/8 mm
For driving split pins and studs out of clearance ƒ Chrome-vanadium steel, tempered
holes. ƒ Tempered impact head Technical Data:
ƒ Drive cone or drive point, bare ƒ Length: 150 mm
ƒ Painted shaft

No. 51280 No. 51284 500 No. 51284 520

In metal In holder In metal
case with base case
Composition of set 51280... 51284... 51284...
Ident. No. Ident. No. Ident. No.
Supplied shaft cross-sections: 6 x 6 mm/8 x 2 mm 395 O. R. - - - -
Supplied shaft cross-sections: 10-12 mm - - 500 O. R. 520 O. R.
Set price, €
GEDORE = Prod. Gr. 558
ORION = Prod. Gr. 593
Centre punch

Execution:
ƒ Tempered impact head Technical Data: No. 51295
ƒ Bare tip ƒ Material: Chrome-vanadium steel
ƒ Painted shaft
General tools
Length (mm) 120 100 120 150
Shank width x shank thickness 10 x 10 mm 8 x 8 mm 12 x 12 mm 12 x 12 mm No. 51296
Ident. No.
010
51295... Unit price, € O. R. - - -
510
520
490
Ident. No.
500
51296... Unit price, € O. R. O. R. O. R. O. R.
GEDORE = Prod. Gr. 558
ORION = Prod. Gr. 593

www.buypremiumtools.com 272
