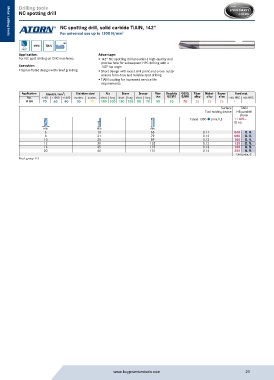

Page 21 - Buy Premium Tools ATORN Catalogue
P. 21
Drilling tools
NC spotting drill
NC spotting drill, solid carbide TiAlN, 142°
For universal use up to 1300 N/mm 2
Metal cutting tools
Metal cutting tools
HB
VHM TiAlN
142°
Application: Advantage:
For NC spot drilling on CNC machines. 142° NC spotting drill provides a high-quality and
Execution: precise hole for subsequent HPC drilling with a
140° tip angle
Spiral-fluted design with relief grinding Short design with exact drill point and cross-cutter
ensure form-true and reliable spot drilling
TiAlN coating for increased service life
requirements
Application Steel (N/mm ) 2 Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11169 70 60 40 30 20 180 200 150 130 80 70 50 20 70 25 25 25 4
Surface TiAlN
Tool holding device HB parallel
shank
f steel 1300 (mm/U) 11169...
ID no.
mm mm mm
6 16 66 0.11 060 O. R.
8 21 79 0.12 080 O. R.
10 25 89 0.12 100 O. R.
12 30 102 0.12 120 O. R.
16 35 115 0.13 160 O. R.
20 40 131 0.14 200 O. R.
Unit price, €
Prod. group 113
