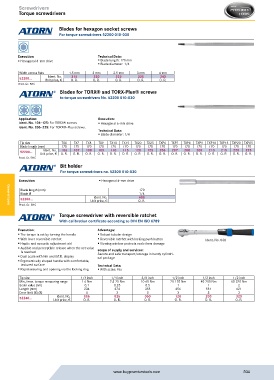

Page 504 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Torque screwdrivers

Blades for hexagon socket screws
For torque screwdrivers 52200 010-030

Execution: Technical Data:
ƒ Hexagonal 6-mm drive ƒ Blade length: 170 mm
ƒ Blade diameter: 1/4
Width across flats 1.5 mm 2 mm 2.5 mm 3 mm 4 mm
325
330
315
320
Ident. No.
52200... Unit price, € O. R. O. R. O. R. O. R. 340
O. R.
Prod. Gr. 5HC
Blades for TORX® and TORX-Plus® screws
to torque screwdrivers No. 52200 010-030
Application: Execution:
Ident. No. 106–125: For TORX® screws ƒ Hexagonal 6-mm drive
Ident. No. 206–225: For TORX®-Plus screws.
Technical Data:
ƒ Blade diameter: 1/4

Tip size TX6 TX7 TX8 TX9 TX10 TX15 TX20 TX25 TXP6 TXP7 TXP8 TXP9 TXP10 TXP15 TXP20 TXP25
Blade length (mm) 170 175 170 170 170 170 170 170 170 170 170 170 170 170 170 170
Ident. No.
215
110
106
208
109
210
207
107
120
125
220
225
52200... Unit price, € O. R. O. R. 108 O. R. O. R. 115 O. R. O. R. 206 O. R. O. R. 209 O. R. O. R. O. R. O. R.
O. R.
O. R.
O. R.
O. R.
Prod. Gr. 5HC
Bit holder
For torque screwdrivers no. 52200 010-030
Execution: ƒ Hexagonal 6-mm drive
Blade length (mm) 170
Blade Ø 1/4
400
Ident. No.
52200... Unit price, € O. R.
Prod. Gr. 5HC
General tools
Torque screwdriver with reversible ratchet
With calibration certificate according to DIN EN ISO 6789
Execution: Advantage:
ƒ The torque is set by turning the handle ƒ Robust tubular design
ƒ With lever-reversible ratchet ƒ Reversible ratchet with locking push button Ident. No. 060
ƒ Haptic and acoustic adjustment aid ƒ Viewing window protects scale from damage
ƒ Audible and perceptible release when the set value scope of supply and services:
is reached Secure and safe transport/storage in handy cylindri-
ƒ Dual scale with Nm and lbf.ft. display cal package
ƒ Ergonomically shaped handle with comfortable,
textured surface Technical Data:
ƒ Rapid securing and opening via the locking ring ƒ With scale: Yes
Tip size 1/4 inch 1/4 inch 3/8 inch 1/2 inch 1/2 inch 1/2 inch
Min./max. torque measuring range 1-6 Nm 2.5-25 Nm 10-60 Nm 20-120 Nm 40-200 Nm 60-320 Nm
Scale value (nm) 0.1 0.25 0.5 1 1 2
Length (mm) 234 274 355 456 551 621
Error limit (%) (%) 4 3 3 3 3 3
025
Ident. No.
006
200
120
320
52240... Unit price, € O. R. O. R. 060 O. R. O. R. O. R.
O. R.
