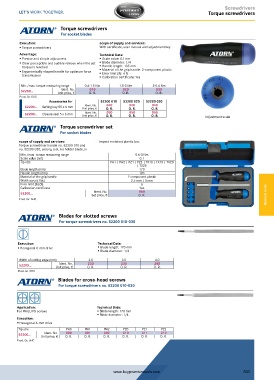

Page 503 - Buy Premium Tools ATORN Catalogue

Screwdrivers
Torque screwdrivers

Torque screwdrivers
For socket blades
Execution: scope of supply and services:
ƒ Torque screwdrivers With certificate, user manual and adjustment key
Advantage: Technical Data:
ƒ Precise and simple adjustment ƒ Scale value: 0.1 nm
ƒ Clear perceptible and audible release when the set ƒ Blade diameter: 1/4
torque is reached ƒ Handle length: 105 mm
ƒ Ergonomically shaped handle for optimum force ƒ Material of the grip handle: 2-component plastic
ƒ Error limit (%): 6 %
transmission ƒ Calibration certificate: Yes
Min./max. torque measuring range 0.6-1.5 Nm 1.5-3 Nm 3-5.4 Nm
Ident. No.
020
010
030
52200... Unit price, € O. R. O. R. O. R.
Prod. Gr. 5HC
Accessories for 52200 010 52200 020 52200 030
040
040
040
Ident. No.
52200... Setting key 85 x 6 mm Unit price, € O. R. O. R. O. R.
050
050
050
Ident. No.
52200... Closure seal 5 x 6 mm Unit price, € O. R. O. R. O. R. Adjustment scale
Torque screwdriver set
For socket blades
scope of supply and services: impact-resistant plastic box
Torque screwdriver handle no. 52200 010 and
no. 52200 020, setting tool, bit holder blade, in
Min./max. torque measuring range 0.6-3 Nm
Scale value (nm) 0.1
Tip size PH1 | PH2 | PZ1 | PZ2 | TX10 | TX15 | TX20
| TX25
Blade length (mm) 170
Handle length (mm) 105
Material of the grip handle 2-component plastic
Width across flats 2.5 mm | 3 mm
Error limit (%) (%) 6
Calibration certificate Yes
060
Ident. No.
52200... Set price, € O. R. General tools
Prod. Gr. 5HC
Blades for slotted screws
For torque screwdrivers no. 52200 010-030

Execution: Technical Data:
ƒ Hexagonal 6-mm drive ƒ Blade length: 170 mm
ƒ Blade diameter: 1/4
Width of cutting edge (mm) 3.0 3.5 4.0
240
235
Ident. No.
52200... Unit price, € 230 O. R. O. R.
O. R.
Prod. Gr. 5HC
Blades for cross-head screws
For torque screwdrivers no. 52200 010-030

Application: Technical Data:
For PHILLIPS screws ƒ Blade length: 170 mm
ƒ Blade diameter: 1/4
Execution:
ƒ Hexagonal 6-mm drive
Tip size PH0 PH1 PH2 PZ0 PZ1 PZ2
312
311
301
300
Ident. No.
310
302
52200... Unit price, € O. R. O. R. O. R. O. R. O. R. O. R.
Prod. Gr. 5HC
